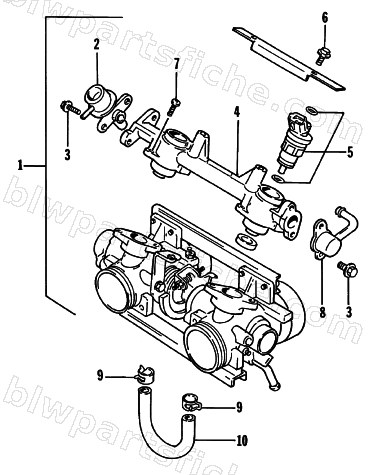

1997 Arctic Cat ZR 580 EFI — THROTTLE BODY ASSEMBLY
1997 ZR 580 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-068 | BODY ASSY, THROTTLE (CIRCLE) | 1 | $2,527.95 | |
| 1 | 3005-069 | BODY ASSY, THROTTLE (SQUARE) | 1 | $2,376.95 | |
| 1 | 3005-070 | BODY ASSY, THROTTLE (TRIANGLE) | 1 | $2,207.95 | |
| 2 | 3005-074 | REGULATOR COMP, FUEL PRESSURE | 1 | $451.95 | |
| 3 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 4 | 3005-078 | PIPE, DELIVERY | 1 | $564.95 | |
| 5 | 3005-075 | INJECTOR ASSY, FUEL (CIRCLE) | 1 | $647.95 | |
| 5 | 3005-076 | INJECTOR ASSY, FUEL (SQUARE) | 1 | $666.95 | |
| 5 | 3005-077 | INJECTOR ASSY, FUEL (TRIANGLE) | 1 | $666.95 | |
| 7 | 3004-634 | SCREW,M5X16 | 1 | $3.95 | |
| 8 | 3005-079 | PIPE COMP, FUEL INLET | 1 | $498.95 | |
| 9 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 10 | 3005-103 | HOSE, WATER | 1 | $68.95 |
