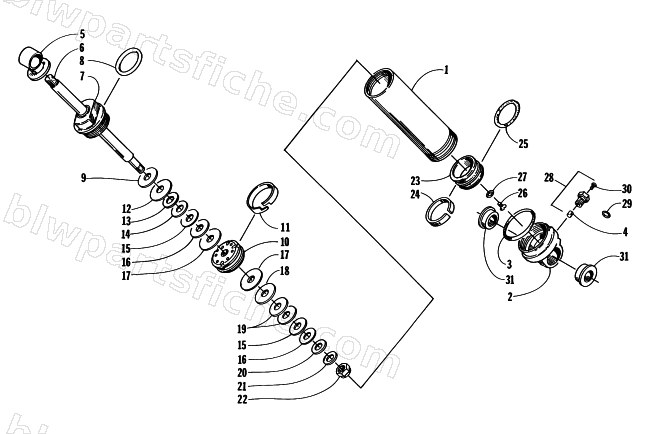

1997 Arctic Cat ZR 580 EFI — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
1997 ZR 580 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1639-769 | REBUILD KIT, A/C SHOCK-(IFP & RES. SHOCK | 1 | $75.95 | |
| 1 | 1704-346 | SHOCK BODY/END CAP ASSY | 1 | $232.95 | |
| 2 | 1604-578 | ENDCAP, SHOCK - ASSY (FOX) | 1 | $157.95 | |
| 3 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 4 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 6 | 0604-626 | ROD, SHOCK - 5.280" | 1 | $152.95 | |
| 7 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 8 | 0603-294 | O RING-CAP ASSY. | 1 | $6.95 | |
| 9 | 0603-387 | WASHER (FOX-TOP OUT PLATE) | 1 | $2.95 | |
| 10 | 0603-952 | PISTON, 0.059 ORIFICE | 1 | $25.95 | |
| 11 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 12 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 13 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 14 | 0603-881 | VALVE, SHOCK 1.000 X.012(3/8ID) | 1 | $6.95 | |
| 15 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 16 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 17 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 18 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 19 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 20 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 21 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 22 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 23 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 24 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 25 | 0603-447 | O-RING, .139 CS X 1.171 ID (FOX) | 1 | $4.95 | |
| 26 | 0604-629 | SCREW,RELIEF | 1 | $1.95 | |
| 27 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 29 | 0603-445 | O-RING-VALVE | 1 | $3.95 | |
| 30 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 31 | 0704-440 | BUSHING,FRONT ARM | 1 | $13.95 |
