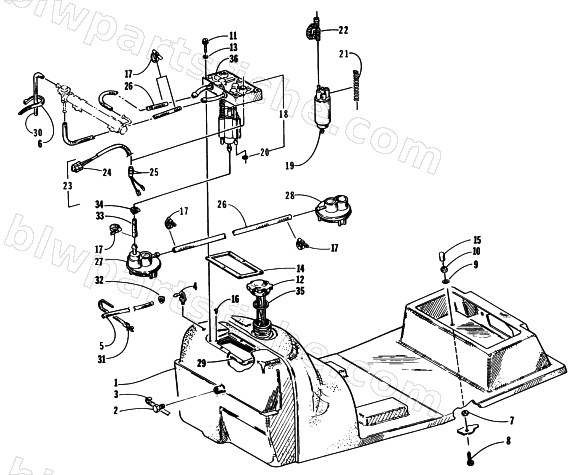

1997 Arctic Cat ZR 580 EFI — GAS TANK AND FUEL PUMP ASSEMBLY
1997 ZR 580 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-211 | TANK,GAS-ASSY- 97 EXT EFI/EXT DLX | 1 | $361.95 | |
| 2 | 0670-243 | PLUG, GAS TANK-1/4 NPT | 1 | $1.92 | |
| 3 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 4 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 5 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 5 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 6 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 7 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 9 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0623-521 | SCREW,MACH-HWH-10-24X1.25-Z&Y | 1 | $5.95 | |
| 12 | 0670-525 | CAP,GAS-W/GAUGE | 1 | $84.95 | |
| 13 | 0623-371 | WASHER,NYLON(ARDEN LWNY-016-9) | 1 | $0.15 | |
| 14 | 0670-410 | SEAL,MOUNTING-FUEL PUMP EFI | 1 | $40.95 | |
| 16 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 17 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 18 | 0670-664 | PUMP,FUEL ASS'Y-ELEC PFA9 | 1 | $581.95 | |
| 19 | 3005-268 | PUMP ASSY,FUEL(KEFI) | 1 | $721.95 | |
| 20 | 0670-232 | RING,RETAINING-EFI PUMP | 1 | $6.59 | |
| 21 | 0670-316 | SPRING, COMPRESSION - ELEC FUEL PUMP | 1 | $5.95 | |
| 22 | 0670-315 | HOSE, LOOPED FUEL PUMP | 1 | $63.95 | |
| 23 | 0670-379 | HARNESS ASS'Y-ELECT FUEL PUMP W/O GA | 1 | $43.95 | |
| 24 | 0670-380 | HOUSING, CONNECTOR | 1 | $5.95 | |
| 25 | 0670-381 | O-RING | 1 | $14.95 | |
| 26 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 | |
| 27 | 0770-731 | KIT,FUEL PICKUP | 1 | $185.95 | |
| 28 | 1670-619 | PICKUP, FUEL-(MP12)SMALL NONVENTED | 1 | $69.95 | |
| 29 | 0670-409 | RING,RETAINING-EFI FUEL PUMP | 1 | $31.95 | |
| 30 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 31 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 32 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 33 | 0670-559 | HOSE,FUEL PUMP-FORMED (EFI) | 1 | $38.95 | |
| 34 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 36 | 1670-636 | KIT, REBUILD-FUEL PUMP-PFA9 & PFA12 | 1 | $169.95 |
