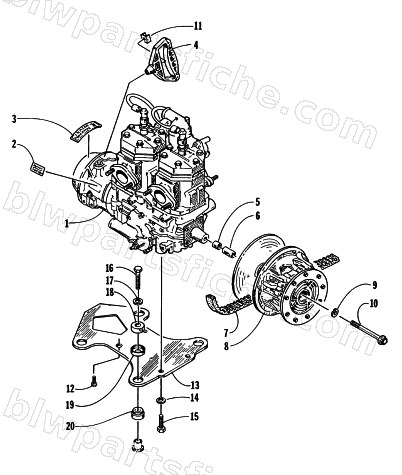

1997 Arctic Cat ZR 580 EFI — ENGINE AND RELATED PARTS
1997 ZR 580 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-122 | ENGINE,580 W/O EFI CP(AD58L2)(FROM-211) | 1 | $5,523.95 | |
| 2 | 2611-607 | DECAL,ENGINE P/N 0662-183 | 1 | $3.95 | |
| 4 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 5 | 0646-107 | SPACER,ALUMINUM-CLUTCH | 1 | $29.95 | |
| 6 | 0646-106 | SPACER,URETHANE-CLUTCH | 1 | $5.09 | |
| 7 | 0627-010 | BELT, DRIVE CVT-12.2 | 1 | $106.95 | |
| 8 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 9 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 10 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 11 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 12 | 0623-015 | SCREW,1/2-13UNC X 1.25 | 1 | $4.95 | |
| 13 | 0608-114 | PLATE,MTG-ENGINE | 1 | $242.95 | |
| 14 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 15 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 16 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 17 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 18 | 0108-199 | MOUNT,ENGINE-FEMALE | 1 | $12.35 | |
| 19 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 20 | 0108-198 | MOUNT,ENGINE-MALE | 1 | $5.95 |
