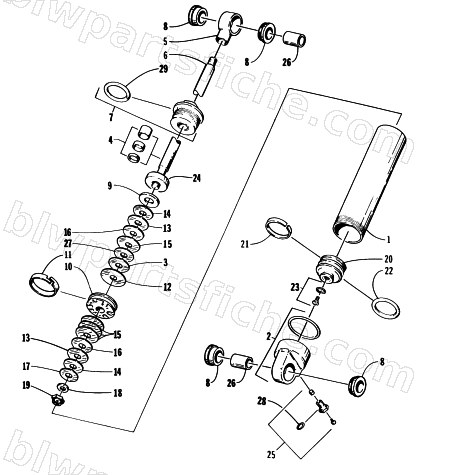

1997 Arctic Cat ZR 440 — REAR SUSPENSION - REAR ARM SHOCK ABSORBER
1997 ZR 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0704-474 | SHOCK,REAR ARM (1604-186) | 1 | $697.95 | |
| 0 | 1639-769 | REBUILD KIT, A/C SHOCK-(IFP & RES. SHOCK | 1 | $75.95 | |
| 1 | 0604-637 | BODY, SHOCK 7.310"(FOX ONLY) | 1 | $177.95 | |
| 2 | 0704-265 | END CAP,SHOCK-(REAR ARM) | 1 | $133.95 | |
| 3 | 0603-342 | VALVE,1.100X.006(3/8ID) | 1 | $6.95 | |
| 4 | 0603-280 | SPACER,SHOCK .125 | 1 | $10.97 | |
| 4 | 0603-281 | SPACER,SHOCK .500 | 1 | $32.95 | |
| 4 | 0603-282 | SPACER,SHOCK 1.000 | 1 | $43.95 | |
| 5 | 0704-264 | EYELET,SHOCK W/BUSHING | 1 | $78.95 | |
| 7 | 0704-622 | ARM,IDLER-FAB (HEX) -GRN | 1 | $596.95 | |
| 8 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 9 | 0603-387 | WASHER (FOX-TOP OUT PLATE) | 1 | $2.95 | |
| 10 | 0603-418 | PISTON, .043 ORFICE | 1 | $140.95 | |
| 11 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 12 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 13 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 14 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 15 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 16 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 17 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 18 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 19 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 20 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 21 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 22 | 0603-447 | O-RING, .139 CS X 1.171 ID (FOX) | 1 | $4.95 | |
| 23 | 0703-340 | SCREW,RELIEF-WITH O-RING(RB 0703-724) | 1 | $5.95 | |
| 24 | 1604-364 | SPACER, SHAFT (.530 ID X .75 OD X .375) | 1 | $6.95 | |
| 25 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 26 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 27 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 28 | 0603-445 | O-RING-VALVE | 1 | $3.95 | |
| 29 | 0603-294 | O RING-CAP ASSY. | 1 | $6.95 |
