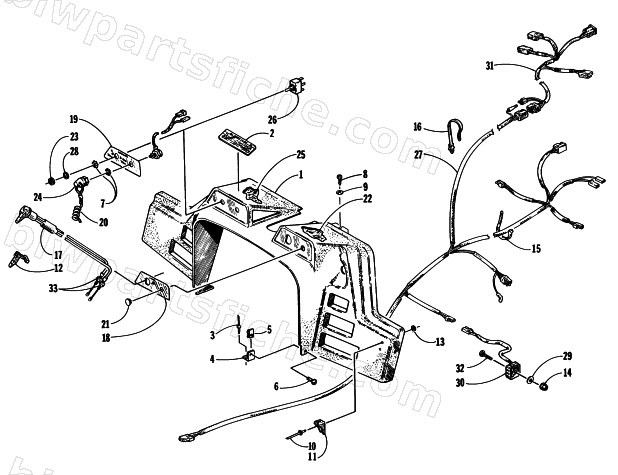

CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
1997 ZR 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-124 | CONSOLE | 1 | $322.95 | |
| 2 | 1611-408 | DECAL,WARNING-SEATING CAP. | 1 | $17.95 | |
| 3 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 5 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 7 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 8 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 9 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 10 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 11 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 12 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 13 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 14 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 17 | 0687-007 | CABLE,CHOKE-DUAL | 1 | $84.95 | |
| 18 | 2611-756 | PLATE,CONSOLE-SWITCHES-RH | 1 | $27.95 | |
| 19 | 2611-757 | PLATE,CONSOLE-SWITCHES-LH | 1 | $27.95 | |
| 20 | 0630-077 | SWITCH,TETHER-N.O. ASSY. | 1 | $70.95 | |
| 21 | 0623-593 | PLUG,HOLE 1/2-STEEL | 1 | $5.09 | |
| 22 | 0617-178 | FOAM,CONSOLE RH | 1 | $5.95 | |
| 23 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 25 | 0617-179 | FOAM,CONSOLE LH | 1 | $2.95 | |
| 26 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 27 | 0686-399 | HARNESS,MAIN WIRING | 1 | $278.95 | |
| 28 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 29 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 30 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 31 | 0686-332 | HARNESS,HOOD-HDLHT & INSTR | 1 | $61.95 | |
| 32 | 8002-048 | SCREW,CAP-HH 1/4-20 X2.25 G5 Z&Y | 1 | $0.68 | |
| 33 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 |
