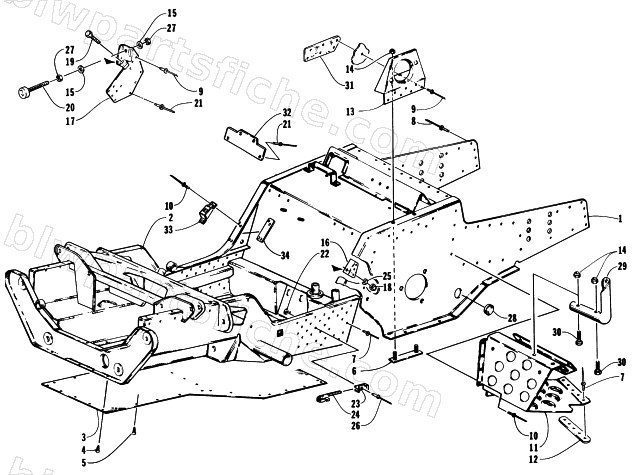

FRONT FRAME AND FOOTREST ASSEMBLY
1997 ZL 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-274 | CHASSIS- FRONT END 440ZL | 1 | $616.95 | |
| 2 | 0707-261 | FRONT END,WELD'T ('97Z4B) | 1 | $1,428.95 | |
| 4 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 5 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 6 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 7 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 8 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 9 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 10 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 11 | 0706-916 | FOOTREST-RH (PAINTED BLK - 0616-286) | 1 | $165.95 | |
| 11 | 0706-917 | FOOTREST-LH (PAINTED BLK - 0616-287) | 1 | $163.95 | |
| 12 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 13 | 0707-146 | SUPPORT,BEARING-WELDMENT | 1 | $81.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 17 | 0708-023 | BRKT,TORQUE BUMPER-PTD BLK | 1 | $63.95 | |
| 18 | 8043-362 | NUT,1/4-20 HEX LOCK-MET TOP LOCK GRA Z&Y | 1 | $0.25 | |
| 19 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 20 | 0608-126 | BUMPER,TORQUE {3.56"} ENGINE | 1 | $20.95 | |
| 21 | 0623-149 | RIVET,CHERRY SSPQ56 | 1 | $1.95 | |
| 22 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 23 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 24 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 25 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 26 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 27 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 28 | 0623-471 | PLUG,HOLE-.750 DIA BLACK | 1 | $1.23 | |
| 29 | 0716-219 | TUBE,BUMPER SUPPORT | 1 | $30.95 | |
| 30 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 31 | 0607-388 | PLATE,BACKING-BEARING SUPPORT | 1 | $3.99 | |
| 32 | 0605-213 | PLATE,BACKING-FRONT COVER | 1 | $15.11 | |
| 33 | 0707-184 | BRKT,RES. MOUNT-WELD'T | 1 | $28.95 | |
| 34 | 0607-429 | PLATE,BACKING-RESONATOR MOUNT | 1 | $1.37 |
