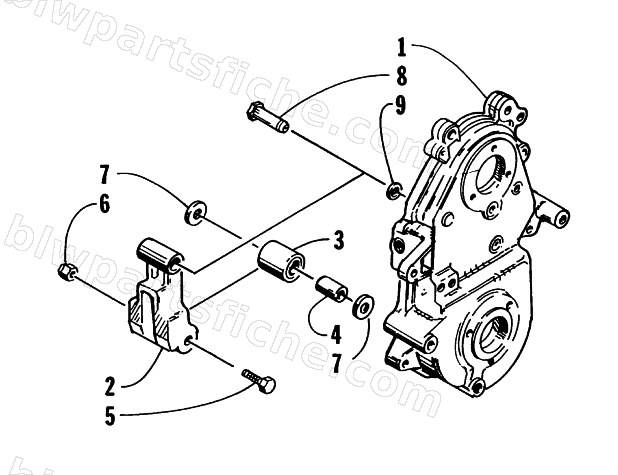

1997 Arctic Cat ZL 440 — DROPCASE CHAIN TENSION ASSEMBLY
1997 ZL 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0702-108 | KIT, DROPCASE W/STUDS-98 HYD BRAKE | 1 | $167.95 | |
| 2 | 0602-675 | ARM, CHAIN ROLLER | 1 | $35.95 | |
| 3 | 0702-129 | ROLLER ASSY-CHAIN TIGHTENER | 1 | $60.95 | |
| 4 | 0602-676 | SHAFT, CHAIN ROLLER | 1 | $20.95 | |
| 5 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 6 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 7 | 0623-525 | WASHER, FLAT-.5 X 1.01 OD HARDENED | 1 | $7.72 | |
| 8 | 0602-681 | NUT, ROLLER ARM | 1 | $82.95 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 |
