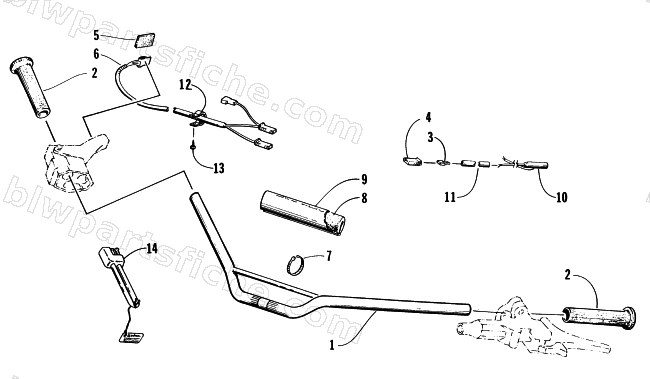

1997 Arctic Cat Z 440 — HANDLEBAR ASSEMBLY
1997 Z 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 1 | 0705-141 | HANDLEBAR-WELDMENT-4130 | 1 | $165.95 | |
| 2 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 3 | 0231-007 | TERMINAL FMALE 2 COND | 1 | $2.95 | |
| 4 | 0230-015 | CONN BODY RECPT 1CON | 1 | $1.95 | |
| 5 | 0617-109 | PAD,INSULATOR-THUMB WARMER | 1 | $21.95 | |
| 6 | 0609-139 | ELEMENT,THUMB WARMER-TAP IN | 1 | $81.95 | |
| 7 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 8 | 0605-277 | FOAM,HANDLEBAR PAD | 1 | $34.95 | |
| 10 | 0115-356 | HEATER,HANDLEBAR 32.00" | 1 | $66.95 | |
| 11 | 0706-528 | GEON TUBING-10 FT ROLL | 1 | $13.95 | |
| 12 | 0623-169 | CLAMP,WIRE-3/16 ID | 1 | $8.21 | |
| 13 | 0623-200 | SCREW,SELF TAP #8X5/16 | 1 | $0.15 | |
| 14 | 0709-057 | PLUG,BY-PASS-IGNITION(2-PRONG) | 1 | $26.95 |
