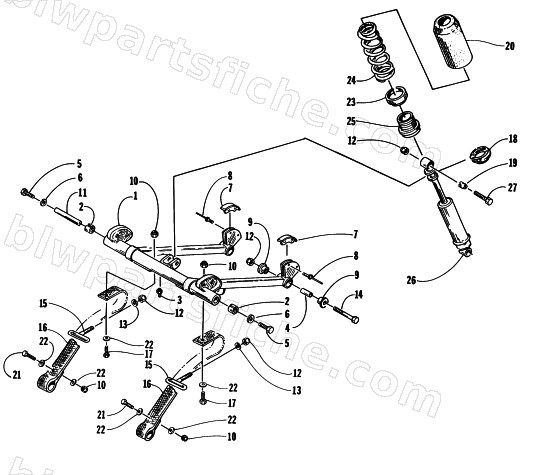

1997 Arctic Cat THUNDERCAT — REAR SUSPENSION FRONT ARM ASSEMBLY
1997 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-353 | ARM,FRONT-FABR | 1 | $275.95 | |
| 2 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 3 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 4 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 5 | 0623-654 | SCREW,CAP-THIN HH 3/8-16 X 2.25 GR5 Z&Y | 1 | $0.95 | |
| 6 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 7 | 0604-183 | BUMPER,TRACK GUIDE | 1 | $32.95 | |
| 8 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 9 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 12 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 13 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 14 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 15 | 0704-256 | ADJUSTER,FRT.ARM-PTD BLK | 1 | $16.49 | |
| 16 | 1604-131 | STRAP,LIMITER-FRONT | 1 | $77.95 | |
| 17 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 18 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 19 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 20 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 22 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 23 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 24 | 1604-125 | SPRING,COMPRESSION-FRONT | 1 | $55.95 | |
| 25 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 26 | 1604-093 | SHOCK ABSORBER,FRONT ARM-RYDE FX | 1 | $208.95 |
