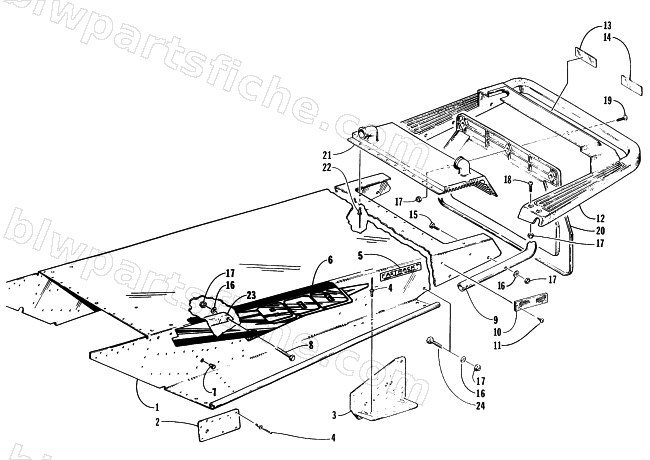

1997 Arctic Cat THUNDERCAT MC — TUNNEL AND REAR BUMPER
1997 THUNDERCAT MC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-564 | TUNNEL-ASSY 97 THC/MC | 1 | $1,168.95 | |
| 2 | 0616-459 | PLATE,BODY-REINFORCEMENT | 1 | $4.95 | |
| 3 | 0706-730 | BRKT,SUSPENSION-WELDED-RH | 1 | $47.95 | |
| 3 | 0706-731 | BRKT,SUSPENSION-WELDED-LH | 1 | $52.95 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 5 | 2611-741 | DECAL, "FASTRACK" - TUNNEL | 1 | $16.95 | |
| 6 | 2611-747 | DECAL,TUNNEL-LH(97TCB) | 1 | $48.95 | |
| 7 | 0606-983 | PLUG,BODY 3/8-BLACK | 1 | $1.92 | |
| 8 | 0623-268 | SCREW,FLAT HEAD-1/4-20 X 1.50 | 1 | $0.35 | |
| 9 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0716-223 | BUMPER W/STEEL INSERT | 1 | $181.95 | |
| 12 | 0616-731 | BUMPER,REAR | 1 | $164.95 | |
| 13 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8007-585 | SCREW,MACH-CRTH 1/4-20X1.50 G2 Z&Y | 1 | $0.40 | |
| 19 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 20 | 0616-612 | SNOWFLAP,30 DEG.FLIP UP WHITE | 1 | $54.95 | |
| 20 | 0616-613 | SNOWFLAP,REV- | 1 | $68.95 | |
| 21 | 0716-173 | HEAT EXCHANGER REAR-WELDMT | 1 | $299.95 | |
| 22 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 23 | 0604-497 | GUIDE,TRACK | 1 | $20.95 | |
| 24 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 |
