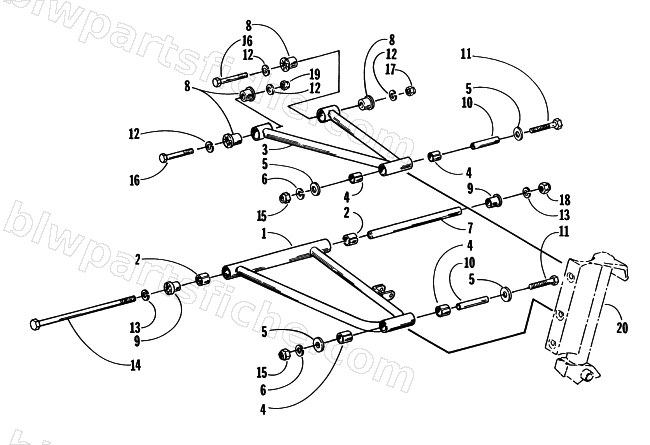

A-ARM ASSEMBLY
1997 THUNDERCAT MC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-432 | A-ARM,LOWER-FAB (RH)-NEON GRN.'97 41" AW | 1 | $286.95 | |
| 1 | 0703-433 | A-ARM,LOWER-FAB (LH)-NEON GRN.'97 41" AW | 1 | $238.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 0703-438 | A-ARM,UPPER-FAB-NEON GRN ('97 41" AWS IV | 1 | $49.95 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 6 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 7 | 0603-517 | TUBE,AXLE-LOWER PIVOT | 1 | $41.95 | |
| 8 | 0603-611 | AXLE,SERRATED-UPPER-ARM-PIVOT | 1 | $6.95 | |
| 9 | 0603-524 | AXLE,SERRATED-LOWER ARM PIVOT | 1 | $6.47 | |
| 10 | 0603-830 | AXLE,SPINDLE MTG.-STEEL (2.688") | 1 | $39.95 | |
| 11 | 0623-657 | SCREW,CAP HH 3/8-16 X 4.25 GR8 Z&Y | 1 | $1.78 | |
| 13 | 8051-307 | WASHER,SPR LOCK-7/16 .440X.784X.133 Z&Y | 1 | $0.40 | |
| 15 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 16 | 8013-230 | SCREW,CAP-HH 3/8-16 X 2.75 GR8 Z&Y | 1 | $1.37 | |
| 17 | 0623-426 | NUT,NY-LOCK 3/8-16-NYL CAP BLACK | 1 | $1.64 | |
| 18 | 8040-546 | NUT,HEX LOCK-NYL 7/16-14 Z&Y | 1 | $0.45 | |
| 19 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 |
