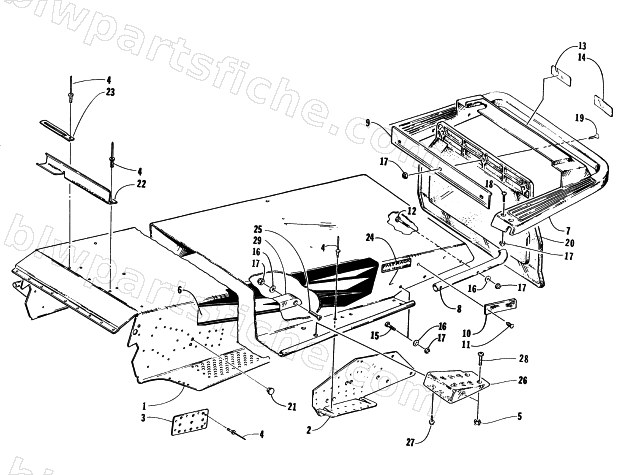

1997 Arctic Cat PUMA 2-UP — TUNNEL AND REAR BUMPER
1997 PUMA 2-UP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-545 | TUNNEL-ASSY 97 PU/2-UP | 1 | $805.95 | |
| 2 | 0716-564 | BRKT, SUSPENSION-WELDMT-RH | 1 | $69.95 | |
| 2 | 0716-565 | BRKT, SUSPENSION-WELDMT-LH | 1 | $69.95 | |
| 3 | 2706-111 | PLATE,BODY-REINFORCEMENT-PTD BLK | 1 | $14.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 6 | 2611-690 | DECAL, TUNNEL-RH | 1 | $63.95 | |
| 6 | 2611-691 | DECAL, TUNNEL-LH | 1 | $63.95 | |
| 7 | 0716-223 | BUMPER W/STEEL INSERT | 1 | $181.95 | |
| 7 | 0616-731 | BUMPER,REAR | 1 | $164.95 | |
| 8 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 13 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8009-585 | SCREW,MACH-CRPH 1/4-20X1.50 G2 Z&Y | 1 | $0.40 | |
| 19 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 20 | 0616-612 | SNOWFLAP,30 DEG.FLIP UP WHITE | 1 | $54.95 | |
| 21 | 0606-983 | PLUG,BODY 3/8-BLACK | 1 | $1.92 | |
| 22 | 0607-488 | BRCKT, MAIN HARNESS PROTECTOR | 1 | $16.49 | |
| 23 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 24 | 2611-741 | DECAL, "FASTRACK" - TUNNEL | 1 | $16.95 | |
| 25 | 0623-268 | SCREW,FLAT HEAD-1/4-20 X 1.50 | 1 | $0.35 | |
| 26 | 0606-698 | FOOTREST,REAR-R.H. | 1 | $33.95 | |
| 26 | 0606-699 | FOOTREST,REAR-L.H. | 1 | $33.95 | |
| 29 | 0604-497 | GUIDE,TRACK | 1 | $20.95 |
