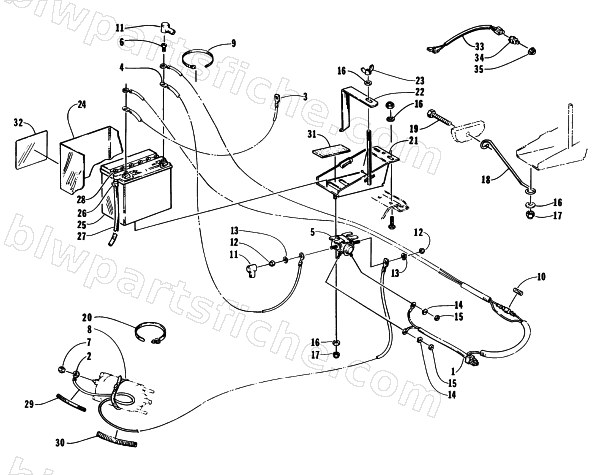

1997 Arctic Cat POWDER SPECIAL — BATTERY, SOLENOID, AND CABLES
1997 POWDER SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0639-242 | KIT, EL START- P/S-P/S EFI KOK | 1 | $814.95 | |
| 1 | 0686-042 | HARNESS,ELECTRIC START | 1 | $68.95 | |
| 2 | 0645-115 | CABLE,SOLENOID-TO-STARTER [52"] | 1 | $66.95 | |
| 3 | 0645-080 | CABLE,BATT-GRD 30 | 1 | $30.95 | |
| 4 | 0645-015 | CABLE,BATT-SOL 14.3 | 1 | $53.95 | |
| 5 | 0645-078 | SOLENOID,ELECTRIC START(COMES W/ KIT 1) | 1 | $106.95 | |
| 6 | 3003-019 | SCREW,MACH-M6-1.0 X 12MM | 1 | $0.15 | |
| 7 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 8 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0630-014 | FUSE,10 AMP | 1 | $10.95 | |
| 11 | 0645-182 | BOOT,TERMINAL-BATTERY | 1 | $10.97 | |
| 12 | 8042-546 | NUT,7/16-14 HEX-REG-GR5 Z&Y | 1 | $0.25 | |
| 13 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 14 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 15 | 8042-272 | NUT,10-32 HEX-REG-GR2 Z&Y | 1 | $0.15 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 0645-231 | BRACKET, SUPPORT- BATTERY TRAY | 1 | $27.95 | |
| 19 | 0623-597 | SCREW,MACH-HSBH-1/4 20X1-1/4 Z&Y | 1 | $1.64 | |
| 20 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 21 | 0745-043 | TRAY,BATTERY-WELDMENT | 1 | $94.95 | |
| 23 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 24 | 0645-082 | WRAP,BATTERY HEAT-6 X 11 | 1 | $6.34 | |
| 25 | 0745-047 | R/B 0745-423 | 1 | $167.95 | |
| 26 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 27 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 28 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 29 | 0645-181 | TUBE,HEAT PROTECTION-4 LONG | 1 | $2.47 | |
| 30 | 0716-391 | CONDUIT, FLEXIBLE-.500 DIA 24" C/T/L | 1 | $3.99 | |
| 31 | 0617-042 | FOAM,BATTERY TRAY | 1 | $4.95 | |
| 32 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 33 | 0686-406 | HARNESS, KEY SWITCH-NO ES | 1 | $22.01 | |
| 34 | 0609-278 | SWITCH, IGN.-E.S.-N.O. | 1 | $71.95 | |
| 35 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 |
