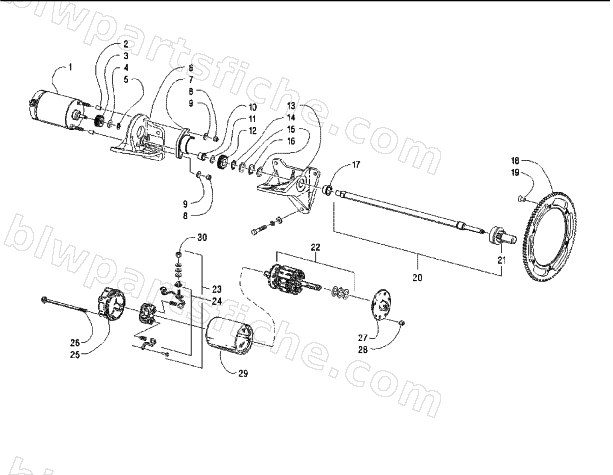

1997 Arctic Cat POWDER EXTREME — ELECTRIC START - STARTER MOTOR ASSEMBLY
1997 POWDER EXTREME
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0645-578 | MOTOR,STARTER | 1 | $532.95 | |
| 2 | 0645-106 | SLEEVE,ALIGNMENT-OFF SET STARTER | 1 | $1.95 | |
| 3 | 0645-289 | GEAR, ES-16T FX PRIMARY | 1 | $42.95 | |
| 4 | 0623-336 | WASHER, SPRING | 1 | $6.95 | |
| 5 | 0645-130 | SNAP RING-MOTOR GEAR | 1 | $1.95 | |
| 7 | 0745-089 | GAURD, GEAR-ES (MACH) | 1 | $68.95 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 0645-108 | BUSHING,SHAFT-PINION (OILITE) | 1 | $19.25 | |
| 11 | 0645-127 | WASHER,THRUST-FLAT | 1 | $1.95 | |
| 12 | 0645-290 | GEAR, ES-20T FX SECONDARY | 1 | $40.95 | |
| 13 | 0745-088 | BRKT,ENG MTG-LH FRT-W/ BUSHING-ES | 1 | $98.95 | |
| 14 | 0645-256 | SNAP RING,EXTL-17MM DIA | 1 | $3.71 | |
| 15 | 0645-254 | WASHER, THRUST-.68IDX1.00OD (WA3122) | 1 | $19.95 | |
| 16 | 0645-255 | WASHER, WAVE-11/16" | 1 | $3.85 | |
| 17 | 0645-213 | BUSHING,STARTER SHAFT | 1 | $12.35 | |
| 18 | 0645-329 | RING GEAR,ELECTRIC START-LW | 1 | $287.95 | |
| 19 | 0623-441 | R/B 1623-128 | 1 | $0.95 | |
| 21 | 0645-186 | STOPPER KIT,PINION-EL START | 1 | $50.95 | |
| 22 | 0645-146 | ARMATURE ASS'Y | 1 | $277.95 | |
| 24 | 0645-275 | KIT, BRUSH & SPRING-ES HD SHORT | 1 | $71.95 | |
| 25 | 0645-054 | COMMUTATOR CAP | 1 | $225.95 | |
| 26 | 0645-128 | BOLT,THRU 1/4-20X5.75 | 1 | $63.95 | |
| 27 | 0745-367 | CAP,MOTOR W/BUSHING | 1 | $57.95 | |
| 30 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 |
