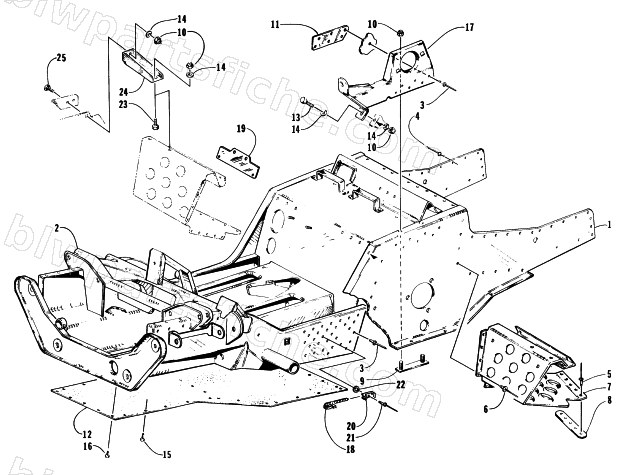

1997 Arctic Cat PANTERA — FRONT FRAME AND FOOTREST ASSEMBLY
1997 PANTERA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-227 | FRONT END,ALUM-FAB | 1 | $797.95 | |
| 2 | 0707-260 | FRONT END,WELDMENT | 1 | $1,042.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 6 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 7 | 0606-198 | FOOTREST-RH,PAINTED | 1 | $157.95 | |
| 7 | 0606-197 | FOOTREST-LH,PAINTED | 1 | $152.95 | |
| 8 | 0616-368 | PLATE,BACKING-FOOTREST/RIVET | 1 | $1.95 | |
| 9 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0607-388 | PLATE,BACKING-BEARING SUPPORT | 1 | $3.99 | |
| 13 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 16 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 18 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 19 | 0605-213 | PLATE,BACKING-FRONT COVER | 1 | $15.11 | |
| 20 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 21 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 22 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 23 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 24 | 0716-395 | BRACKET,BELLYPAN-REAR-WELD'T | 1 | $24.95 | |
| 25 | 0623-458 | BOLT,CARRIAGE-.250X1.00 ZY | 1 | $0.95 |
