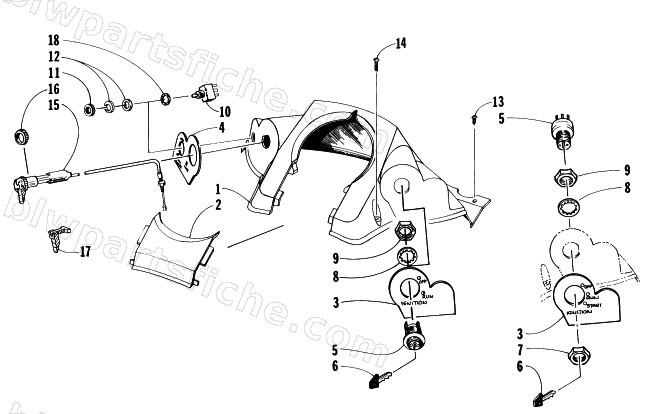

1997 Arctic Cat JAG DLX — CONSOLE AND SWITCH ASSEMBLY
1997 JAG DLX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-063 | CONSOLE | 1 | $24.95 | |
| 2 | 1606-105 | DOOR,CONSOLE | 1 | $19.25 | |
| 4 | 2611-745 | DECAL, CONSOLE SWITCH-LH | 1 | $5.95 | |
| 5 | 0609-278 | SWITCH, IGN.-E.S.-N.O. | 1 | $71.95 | |
| 6 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 7 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 8 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 9 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 10 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 11 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 13 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 14 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 15 | 0687-085 | CABLE, CHOKE | 1 | $38.95 | |
| 16 | 0623-054 | NUT,PLASTIC-CHOKE | 1 | $4.40 | |
| 17 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 18 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 |
