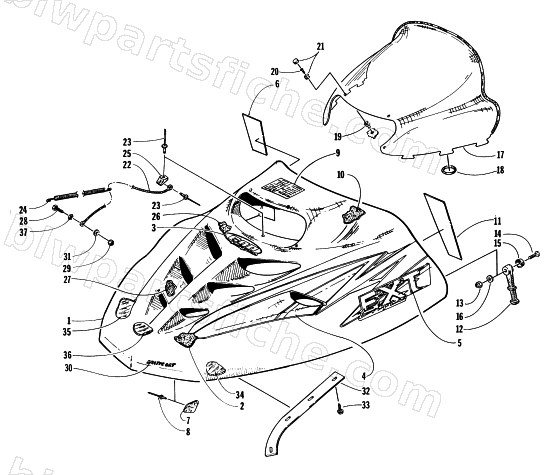

1997 Arctic Cat EXT 600 — HOOD AND WINDSHIELD ASSEMBLY
1997 EXT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-432 | HOOD W/O DECALS | 1 | $1,515.95 | |
| 1 | 0718-558 | HOOD W/DECALS-97 EXT 600 | 1 | $2,501.95 | |
| 2 | 0717-090 | FOAM,HOOD-RH | 1 | $34.95 | |
| 2 | 0717-091 | FOAM,HOOD-LH | 1 | $29.95 | |
| 3 | 2611-705 | DECAL, HOOD - CENTER | 1 | $27.95 | |
| 4 | 2611-706 | DECAL, HOOD - FRONT - RH | 1 | $39.95 | |
| 4 | 2611-707 | DECAL, HOOD - FRONT - LH | 1 | $39.95 | |
| 5 | 2611-696 | DECAL, HOOD-REAR RH | 1 | $104.95 | |
| 5 | 2611-697 | DECAL, HOOD-REAR LH | 1 | $104.95 | |
| 6 | 2611-399 | DECAL,CAUTION-ENG/BATT | 1 | $26.95 | |
| 7 | 0616-567 | BRKT,HINGE-HOOD | 1 | $47.95 | |
| 8 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 9 | 1611-575 | DECAL,WARNING-HOOD | 1 | $25.95 | |
| 10 | 0717-062 | FOAM,HOOD-UPPER-RH | 1 | $13.95 | |
| 10 | 0717-063 | FOAM,HOOD-UPPER-LH | 1 | $13.95 | |
| 11 | 2611-400 | DECAL,WARNING-BRAKE | 1 | $19.95 | |
| 12 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 15 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 22 | 0616-326 | CABLE,HOOD - 43" | 1 | $15.11 | |
| 23 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 24 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 25 | 1606-088 | BRKT,HOOD CABLE | 1 | $6.95 | |
| 26 | 0717-072 | FOAM,HOOD-UPPER-CENTER-RH | 1 | $14.95 | |
| 26 | 0717-073 | FOAM,HOOD-UPPER-CENTER-LH | 1 | $14.95 | |
| 27 | 0717-060 | FOAM,HOOD-CENTER-RH | 1 | $5.95 | |
| 27 | 0717-061 | FOAM,HOOD-CENTER-LH | 1 | $5.95 | |
| 28 | 8005-404 | SCREW, CAP-HSH 10-24X1.25 Z&Y | 1 | $0.95 | |
| 29 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 30 | 1611-756 | DECAL,ARCTIC CAT-HOT GREEN | 1 | $15.11 | |
| 31 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 32 | 0616-915 | GUARD,HEAT ELEC HARNESS | 1 | $58.95 | |
| 33 | 0623-505 | SCREW,SELF TAP-HWH #6X5/8 TYP A Z&Y | 1 | $0.15 | |
| 34 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 35 | 0706-990 | FOIL 6 X12 (0619-727) | 1 | $16.95 | |
| 36 | 0616-753 | FOIL,HOOD-LOWER | 1 | $20.95 | |
| 37 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 |
