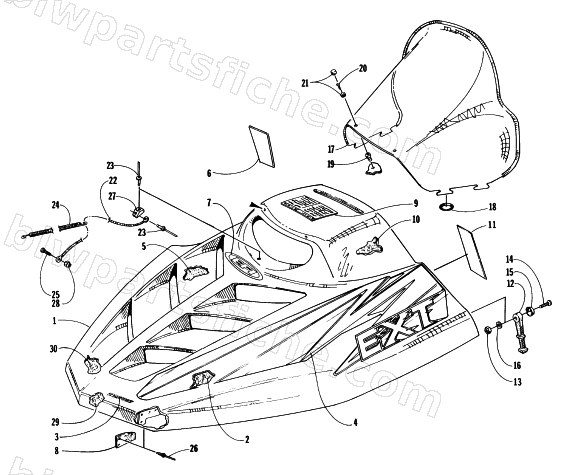

1997 Arctic Cat EXT 580 EFI — HOOD AND WINDSHIELD ASSEMBLY
1997 EXT 580 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-550 | HOOD W/DECALS-97 EXT 580 EFI | 1 | $1,859.95 | |
| 1 | 0718-322 | HOOD W/O DECAL95 EXT | 1 | $1,652.95 | |
| 2 | 0717-058 | FOAM,HOOD-RH | 1 | $32.95 | |
| 2 | 0717-059 | FOAM,HOOD-LH | 1 | $32.95 | |
| 3 | 1611-754 | DECAL,ARCTIC CAT-WHITE | 1 | $19.95 | |
| 4 | 2611-602 | DECAL,HOOD-RH | 1 | $87.95 | |
| 4 | 2611-603 | DECAL,HOOD-LH | 1 | $72.95 | |
| 5 | 0717-060 | FOAM,HOOD-CENTER-RH | 1 | $5.95 | |
| 5 | 0717-061 | FOAM,HOOD-CENTER-LH | 1 | $5.95 | |
| 6 | 2611-176 | DECAL,CAUTION-ENGINE/BATTERY | 1 | $17.95 | |
| 7 | 2611-699 | DECAL, HOOD - EFI | 1 | $27.95 | |
| 8 | 0616-438 | BRKT, HOOD HINGE | 1 | $6.95 | |
| 9 | 1611-575 | DECAL,WARNING-HOOD | 1 | $25.95 | |
| 10 | 0717-062 | FOAM,HOOD-UPPER-RH | 1 | $13.95 | |
| 10 | 0717-063 | FOAM,HOOD-UPPER-LH | 1 | $13.95 | |
| 11 | 2611-163 | DECAL,WARNING-BRAKE ENG/FRENCH | 1 | $19.95 | |
| 12 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 15 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0616-891 | WINDSHIELD, FORMED | 1 | $142.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 22 | 0616-614 | CABLE,HOOD-36.5 (.20 EYELET BOTH ENDS) | 1 | $15.11 | |
| 24 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 25 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 26 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 27 | 1606-088 | BRKT,HOOD CABLE | 1 | $6.95 | |
| 28 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 29 | 0619-230 | FOIL,3 X 24 | 1 | $13.95 | |
| 30 | 0616-498 | FOIL,HOOD-RH | 1 | $21.95 |
