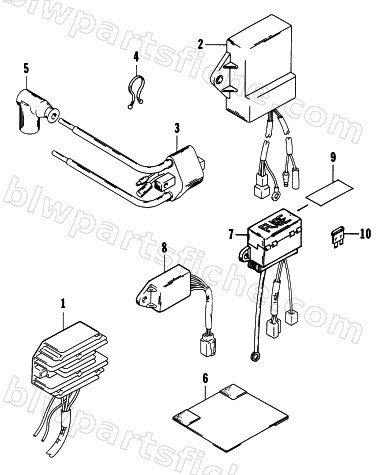

ELECTRICAL
1997 EXT 580 EFI DLX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-057 | REGULATOR RECTIFIER ASSY | 1 | $465.95 | |
| 3 | 3005-185 | COIL SET, IGNITION | 1 | $305.95 | |
| 4 | 3004-685 | CLIP | 1 | $3.95 | |
| 5 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 6 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 7 | 3005-014 | FUSE BOX ASSY-W/HARNESS | 1 | $119.95 | |
| 8 | 3005-056 | UNIT, CHARGE INDICATOR | 1 | $282.95 | |
| 9 | 2611-606 | DECAL,FUSE BOX | 1 | $8.95 | |
| 10 | 0630-057 | FUSE,10 AMP ATO | 1 | $8.95 | |
| 10 | 0630-097 | FUSE,20 AMP ATO/ATC | 1 | $6.95 | |
| 10 | 0630-098 | FUSE,30 AMP ATO/ATC | 1 | $8.21 |
