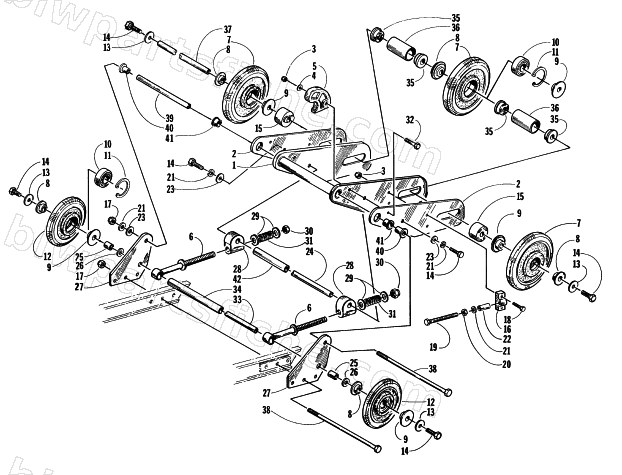

1997 Arctic Cat BEARCAT 440 — ARTICULATING SKID FRAME ASSEMBLY
1997 BEARCAT 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-289 | ARM,SWING-ART-FAB | 1 | $91.95 | |
| 2 | 1604-004 | BRKT,MTG-REAR-AXLE | 1 | $70.95 | |
| 3 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 0604-863 | BUMPER,TRACK-GUIDE | 1 | $29.95 | |
| 6 | 0704-262 | BRACKET,SPRING-PTD BLK | 1 | $49.95 | |
| 7 | 0604-210 | WHEEL,IDLER-CENTER | 1 | $53.95 | |
| 8 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 9 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 10 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 11 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 12 | 0114-240 | WHEEL,IDLER | 1 | $53.95 | |
| 13 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 14 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 15 | 0604-936 | BUSHING,REAR WHEEL ADJUSTER | 1 | $10.97 | |
| 16 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 17 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 18 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 19 | 0623-123 | SCREW,CAP-HEX-3/8-16X5 | 1 | $2.47 | |
| 20 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 21 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 22 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 23 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 24 | 0604-840 | AXLE,SLIDE BLOCK | 1 | $44.95 | |
| 25 | 0604-901 | AXLE,OUTER-AUX-WHEEL | 1 | $22.01 | |
| 26 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 27 | 0604-830 | BRKT,MTG-ARTICULATED-FRAME | 1 | $40.95 | |
| 28 | 0604-839 | BLOCK,SLIDE-ARTICUL-FRAME | 1 | $29.95 | |
| 29 | 8050-342 | WASHER,FLAT- 1/2 X 1.250 X .100 Z&Y | 1 | $1.37 | |
| 30 | 8040-606 | NUT,HEX LOCK-NYL 1/2-13 Z&Y | 1 | $0.95 | |
| 31 | 1704-027 | SPRING, COMPRESSION-ART FRAME-PTD BLK | 1 | $29.95 | |
| 32 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 34 | 0604-832 | TUBE,AXLE | 1 | $68.95 | |
| 35 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 36 | 1704-466 | SPACER,REAR WHEEL-PTD BLK | 1 | $17.87 | |
| 38 | 0623-527 | CAPSCREW, 3/8-16X11 Z&Y GD5 | 1 | $30.95 | |
| 39 | 0604-846 | AXLE,SWING ARM | 1 | $40.95 | |
| 40 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 41 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 42 | 0604-897 | SPACER,ARTICULATING FRAME | 1 | $93.95 |
