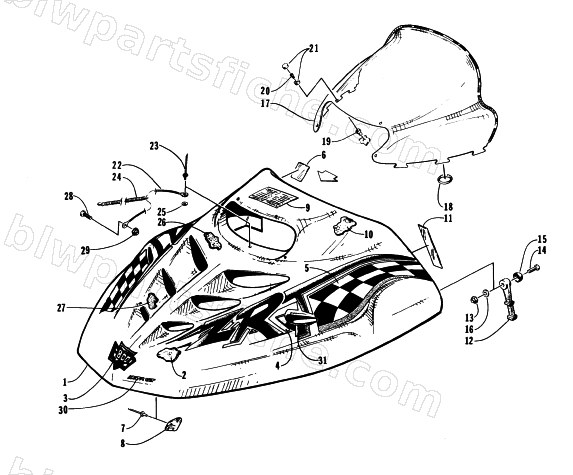

1996 Arctic Cat ZRT 800 — HOOD AND WINDSHIELD ASSEMBLY
1996 ZRT 800
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-432 | HOOD W/O DECALS | 1 | $1,515.95 | |
| 1 | 0718-435 | HOOD W/ DECAL 96 ZRT800 | 1 | $1,914.95 | |
| 2 | 0717-070 | FOAM,HOOD-RH | 1 | $32.95 | |
| 2 | 0717-071 | FOAM,HOOD-LH | 1 | $29.95 | |
| 3 | 2611-396 | DECAL,HOOD-"800" | 1 | $30.95 | |
| 4 | 2611-392 | DECAL,HOOD-FRONT-RH (ZRT) | 1 | $73.95 | |
| 4 | 2611-393 | DECAL,HOOD-FRONT-LH (ZRT) | 1 | $73.95 | |
| 5 | 2611-394 | DECAL,HOOD-REAR-RH (ZRT) | 1 | $75.95 | |
| 5 | 2611-395 | DECAL,HOOD-REAR-LH (ZRT) | 1 | $75.95 | |
| 6 | 2611-399 | DECAL,CAUTION-ENG/BATT | 1 | $26.95 | |
| 7 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 8 | 0616-567 | BRKT,HINGE-HOOD | 1 | $47.95 | |
| 9 | 1611-575 | DECAL,WARNING-HOOD | 1 | $25.95 | |
| 10 | 0717-062 | FOAM,HOOD-UPPER-RH | 1 | $13.95 | |
| 10 | 0717-063 | FOAM,HOOD-UPPER-LH | 1 | $13.95 | |
| 11 | 2611-400 | DECAL,WARNING-BRAKE | 1 | $19.95 | |
| 12 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 15 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 22 | 0616-326 | CABLE,HOOD - 43" | 1 | $15.11 | |
| 23 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 24 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 25 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 26 | 0717-072 | FOAM,HOOD-UPPER-CENTER-RH | 1 | $14.95 | |
| 26 | 0717-073 | FOAM,HOOD-UPPER-CENTER-LH | 1 | $14.95 | |
| 27 | 0717-060 | FOAM,HOOD-CENTER-RH | 1 | $5.95 | |
| 27 | 0717-061 | FOAM,HOOD-CENTER-LH | 1 | $5.95 | |
| 28 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 29 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 30 | 1611-754 | DECAL,ARCTIC CAT-WHITE | 1 | $19.95 | |
| 31 | 2611-397 | DECAL,HOOD-MIDDLE-LH (ZRT) | 1 | $30.95 |
