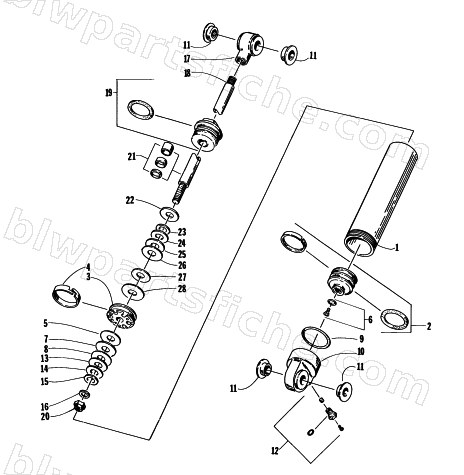

1996 Arctic Cat ZRT 600 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
1996 ZRT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1604-007 | SHOCK,REAR ARM-FOX | 1 | $601.95 | |
| 0 | 1639-769 | REBUILD KIT, A/C SHOCK-(IFP & RES. SHOCK | 1 | $75.95 | |
| 2 | 0703-722 | PISTON,FLOATING-ASSY (1.459 BORE) | 1 | $117.95 | |
| 3 | 0603-952 | PISTON, 0.059 ORIFICE | 1 | $25.95 | |
| 4 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 5 | 0603-345 | VALVE,1.250X.006(3/8ID) | 1 | $12.95 | |
| 6 | 0703-340 | SCREW,RELIEF-WITH O-RING(RB 0703-724) | 1 | $5.95 | |
| 7 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 8 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 9 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 10 | 1703-846 | END CAP, FOX-ASS'Y | 1 | $154.95 | |
| 12 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 13 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 14 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 15 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 16 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 17 | 0704-264 | EYELET,SHOCK W/BUSHING | 1 | $78.95 | |
| 19 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 20 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 21 | 0603-280 | SPACER,SHOCK .125 | 1 | $10.97 | |
| 21 | 0603-281 | SPACER,SHOCK .500 | 1 | $32.95 | |
| 21 | 0603-282 | SPACER,SHOCK 1.000 | 1 | $43.95 | |
| 22 | 0603-387 | WASHER (FOX-TOP OUT PLATE) | 1 | $2.95 | |
| 23 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 24 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 25 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 26 | 0603-731 | VALVE, .700X.004(3/8ID) | 1 | $13.95 | |
| 27 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 28 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 |
