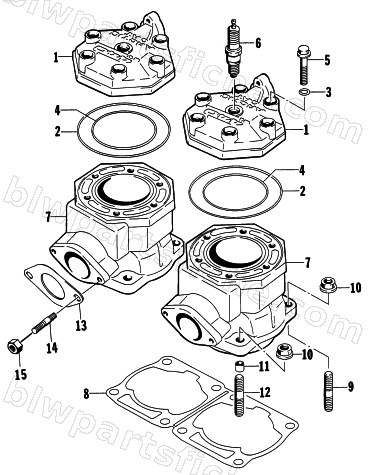

1996 Arctic Cat ZR 440 — CYLINDER AND HEAD ASSEMBLY
1996 ZR 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-950 | HEAD, CYLINDER(440 L/C) | 1 | $394.95 | |
| 2 | 3003-226 | O RING,HEAD-OUTER | 1 | $13.73 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3003-224 | O RING,HEAD-INNER | 1 | $13.73 | |
| 5 | 3006-538 | BOLT,CYL HEAD | 1 | $5.65 | |
| 6 | 0217-700 | SPARK PLUG BR9ES {SOLID} | 1 | $4.54 | |
| 7 | 3004-951 | CYLINDER (440 L/C) | 1 | $1,347.95 | |
| 8 | 3004-952 | GASKET, CYLINDER | 1 | $45.95 | |
| 10 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 11 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 12 | 3005-207 | STUD BOLT,10MM | 1 | $12.35 | |
| 13 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 14 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 15 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 16 | 3007-416 | NUT | 1 | $2.75 |
