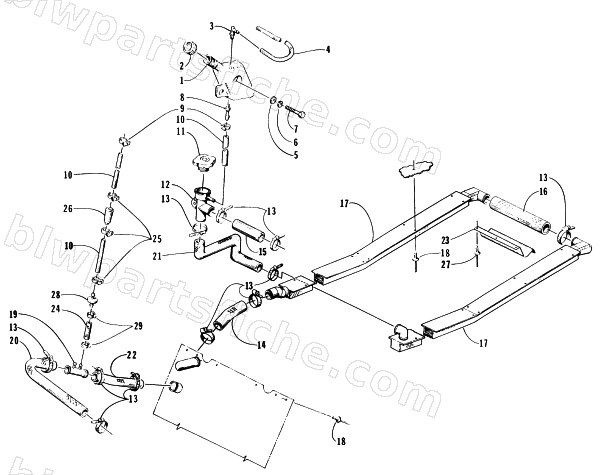

1996 Arctic Cat ZR 440 — COOLING ASSEMBLY
1996 ZR 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-438 | TANK,COOLANT-DUAL NIPPLE | 1 | $105.95 | |
| 2 | 0670-035 | CAP,TANK-WATER | 1 | $16.49 | |
| 3 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 4 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 5 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 6 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 7 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 8 | 0670-292 | FITTING,COOLANT TANK | 1 | $0.45 | |
| 9 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 10 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 11 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 12 | 2606-859 | FILLER NECK | 1 | $38.95 | |
| 13 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 14 | 0610-244 | HOSE,COOLANT-FRONT EXCH.TO RH EXCH. | 1 | $26.95 | |
| 16 | 0610-215 | HOSE,COOLANT-REAR EXCH | 1 | $30.95 | |
| 17 | 0716-364 | HEAT EXCHANGER,WELDMENT RH | 1 | $321.95 | |
| 18 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 19 | 0616-065 | DOUBLE T FITTING,ONE OPENING | 1 | $11.95 | |
| 20 | 0610-139 | HOSE,PUMP TO DOUBLE TEE FITTING | 1 | $51.95 | |
| 21 | 0610-243 | HOSE,COOLANT-FILLER NECK TO LEFT EXCH. | 1 | $59.95 | |
| 22 | 0610-192 | HOSE,FRONT EXCHANGER TO TEE | 1 | $38.95 | |
| 23 | 0616-810 | GUARD,COOLANT HOSE | 1 | $20.95 | |
| 24 | 0610-079 | HOSE, CHECK VALVE-3 | 1 | $5.95 | |
| 25 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 26 | 0610-060 | FILTER,COOLANT | 1 | $19.25 | |
| 27 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 29 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 |
