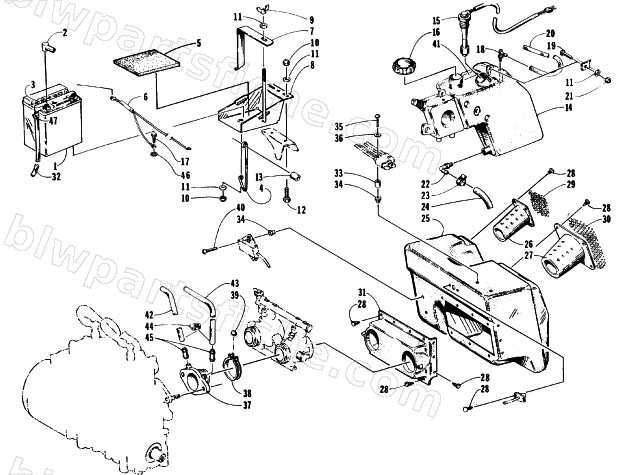

1996 Arctic Cat WILDCAT — AIR SILENCER, BATTERY, AND OIL TANK ASSEMBLIES
1996 WILDCAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-046 | BATTERY PKG (0645-176) | 1 | $96.95 | |
| 2 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 3 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 4 | 0616-495 | BRACKET,SUPPORT-BATT TRAY | 1 | $6.69 | |
| 5 | 0617-233 | FOAM,BAT.TRAY .25 X 3 X 5.25 | 1 | $2.95 | |
| 7 | 0645-177 | STRAP,EFI BATTERY HOLDDOWN | 1 | $28.95 | |
| 8 | 0745-044 | TRAY,BATTERY-WELDMENT | 1 | $126.95 | |
| 9 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 12 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 13 | 0645-158 | SPACER, BATT SUPPORT | 1 | $2.95 | |
| 14 | 0670-440 | TANK,OIL/COOLANT-DUAL NIPPLE | 1 | $224.95 | |
| 15 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 16 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 17 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 18 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 20 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 21 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 0670-002 | FITTING, ELBOW-1/2HBX3/8NPT | 1 | $5.95 | |
| 23 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 24 | 0610-174 | HOSE,OIL LINE-.50 X 13.00 | 1 | $21.95 | |
| 25 | 0670-433 | SILENCER,AIR | 1 | $114.95 | |
| 26 | 0670-205 | FUNNEL,AIR SILENCER 2 | 1 | $26.95 | |
| 27 | 0670-203 | FUNNEL,AIR SILENCER 3.5 | 1 | $26.95 | |
| 28 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 29 | 0670-208 | SCREEN,AIR INTAKE | 1 | $16.49 | |
| 30 | 0670-207 | SCREEN,AIR INTAKE | 1 | $27.95 | |
| 31 | 1670-397 | BOOT, AIR SILENCER | 1 | $113.95 | |
| 32 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 33 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 34 | 0623-084 | RIVET NUT,FLAT HEAD 10-32UNF X .130-.180 | 1 | $0.95 | |
| 36 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 38 | 0670-108 | CLAMP,CARB FLANGE (40/44 MM) | 1 | $24.77 | |
| 39 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 40 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 41 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 42 | 0610-062 | HOSE,BALANCE-SHORT | 1 | $6.95 | |
| 44 | 0623-365 | CLAMP,HOSE (SNP10) | 1 | $1.95 | |
| 45 | 0670-234 | TUBE,CONNECTING | 1 | $17.87 | |
| 46 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 47 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 |
