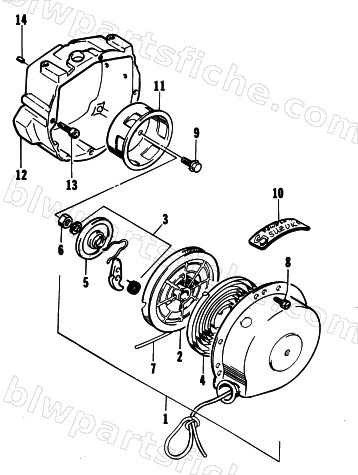

1996 Arctic Cat WILDCAT MOUNTAIN CAT — RECOIL STARTER
1996 WILDCAT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-915 | STARTER ASS'Y, RECOIL | 1 | $305.95 | |
| 2 | 3003-179 | ROLLER,STARTER | 1 | $68.95 | |
| 3 | 3004-729 | RATCHET SET(w/o friction plate) | 1 | $49.95 | |
| 4 | 3002-921 | SPRING,STARTER | 1 | $46.95 | |
| 5 | 3003-181 | PLATE,DRIVE | 1 | $17.87 | |
| 6 | 3007-684 | NUT,10MM | 1 | $3.16 | |
| 8 | 3007-374 | BOLT | 1 | $3.16 | |
| 9 | 3004-435 | BOLT, STARTER PULLY-M8X20(R/B 3007-567) | 1 | $2.95 | |
| 11 | 3003-929 | PULLEY,STARTER | 1 | $88.95 | |
| 12 | 3003-945 | CASE, MAGNETO (W/SENSOR HOLE ) | 1 | $560.95 | |
| 13 | 3007-557 | BOLT | 1 | $4.68 | |
| 14 | 3000-268 | PIN,DOWEL | 1 | $2.95 |
