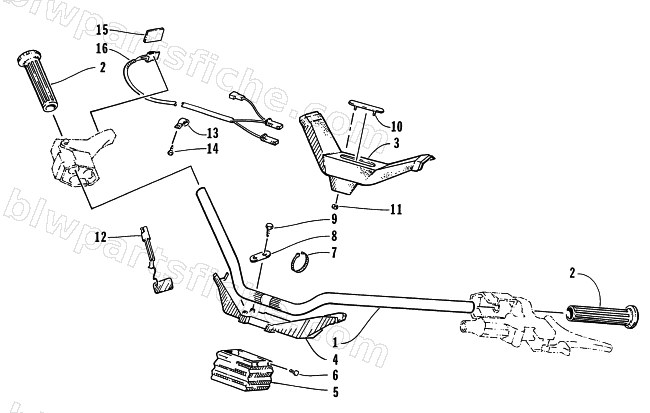

1996 Arctic Cat THUNDERCAT — HANDLEBAR ASSEMBLY
1996 THUNDERCAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0605-077 | HANDLEBAR - PAINTED | 1 | $81.95 | |
| 2 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 4 | 0705-160 | HOUSING, HANLDEBAR PAD | 1 | $54.95 | |
| 6 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 7 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 8 | 0605-094 | PLATE,MTG-HANDLE BAR PAD HOUSING | 1 | $37.95 | |
| 9 | 0123-875 | SCREW,METAL HEX #10X5/8 | 1 | $0.15 | |
| 11 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 12 | 0709-057 | PLUG,BY-PASS-IGNITION(2-PRONG) | 1 | $26.95 | |
| 13 | 0623-169 | CLAMP,WIRE-3/16 ID | 1 | $8.21 | |
| 14 | 0623-200 | SCREW,SELF TAP #8X5/16 | 1 | $0.15 | |
| 15 | 0617-109 | PAD,INSULATOR-THUMB WARMER | 1 | $21.95 | |
| 16 | 0636-766 | KIT, THUMBWARMER W/SWITCH | 1 | $44.95 |
