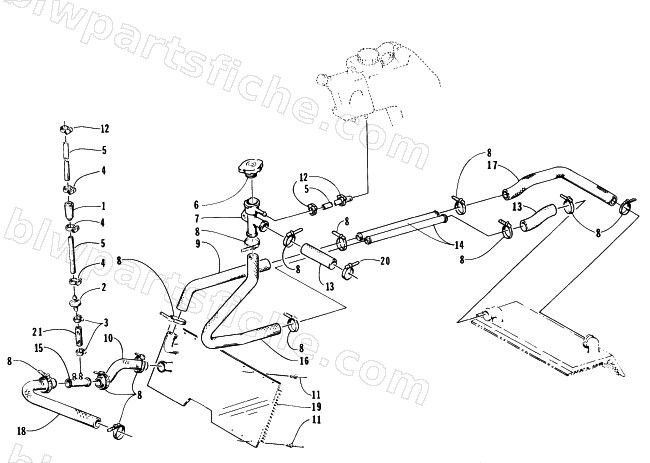

1996 Arctic Cat THUNDERCAT — COOLING ASSEMBLY
1996 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0610-060 | FILTER,COOLANT | 1 | $19.25 | |
| 3 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 4 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 5 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 5 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 6 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 7 | 2606-859 | FILLER NECK | 1 | $38.95 | |
| 8 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 9 | 0610-039 | HOSE,FRT EXCH TO RH TUBE | 1 | $26.95 | |
| 10 | 0610-195 | HOSE,FRONT EXCHANGER/TEE | 1 | $23.95 | |
| 11 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-041 | HOSE,REAR EXCH TO LH TUBE | 1 | $21.95 | |
| 14 | 0616-744 | TUBE,HEAT EX. 36 | 1 | $30.95 | |
| 15 | 0616-065 | DOUBLE T FITTING,ONE OPENING | 1 | $11.95 | |
| 16 | 0610-068 | HOSE,LH TUBE TO FILLER NECK | 1 | $45.95 | |
| 17 | 0610-198 | HOSE,REAR EXCHANGER TO RH TUBE | 1 | $68.95 | |
| 18 | 0610-191 | HOSE,PUMP TO TEE | 1 | $34.95 | |
| 19 | 0706-826 | HEAT EXCHANGER FRONT-WELDMENT | 1 | $206.95 | |
| 20 | 0623-424 | CLAMP,HOSE-1.375 DIA HOSE | 1 | $15.11 | |
| 21 | 0610-079 | HOSE, CHECK VALVE-3 | 1 | $5.95 |
