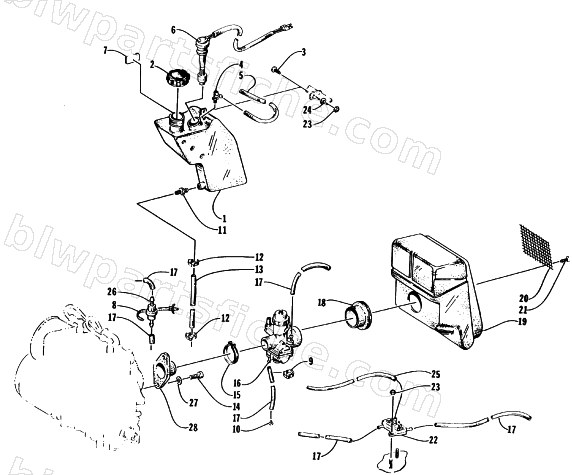

1996 Arctic Cat PUMA 2-UP — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
1996 PUMA 2-UP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-239 | TANK,OIL | 1 | $83.95 | |
| 2 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 4 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 5 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 6 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 7 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 8 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 9 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 10 | 0670-228 | PLUG,CARB DRAIN | 1 | $3.30 | |
| 11 | 0670-117 | OUTLET,OILTANK-5/16 TUBE | 1 | $3.95 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 13 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 14 | 0623-116 | BOLT,SOCKET LOW HEAD M8 X 1.25 X 25 Y&Z | 1 | $4.95 | |
| 15 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 16 | 0670-337 | CARB, VM32-290 | 1 | $324.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 17 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 19 | 0670-338 | SILENCER-FABR REF:0670-097 | 1 | $95.95 | |
| 20 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 21 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 22 | 0115-481 | FUEL PUMP (DF44-227) | 1 | $78.95 | |
| 23 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 25 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 26 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 27 | 0623-041 | WASHER,SPIRNG-.331IDX.591ODX.030THK | 1 | $0.25 | |
| 28 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 |
