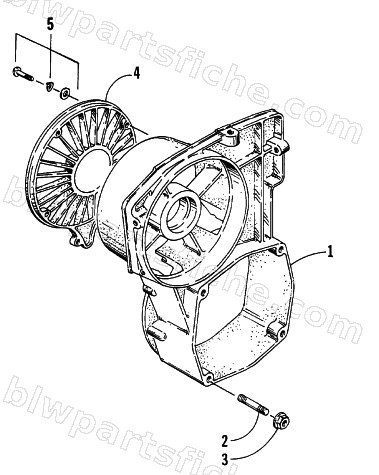

1996 Arctic Cat PANTHER DELUXE — FAN HOUSING
1996 PANTHER DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-383 | CASE, COOLING FAN (FAN HOUSING) | 1 | $301.95 | |
| 2 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 3 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 4 | 3003-384 | COVER, COOLING FAN (FAN HOUSING) | 1 | $28.95 | |
| 5 | 3007-423 | SCREW | 1 | $3.44 |
