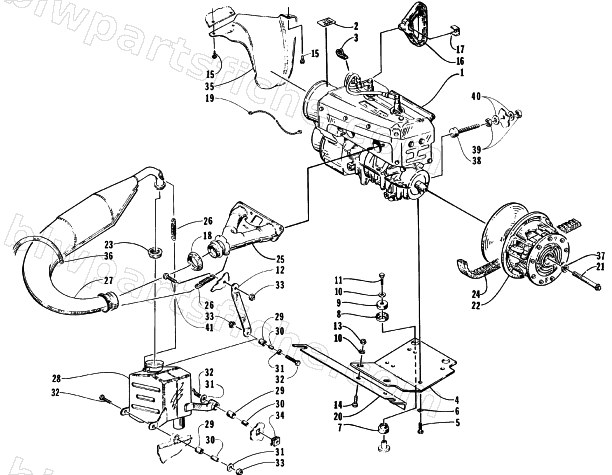

1996 Arctic Cat PANTHER DELUXE — ENGINE AND RELATED PARTS
1996 PANTHER DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2611-196 | DECAL,ENGINE P/N 0662-154 | 1 | $5.95 | |
| 3 | 3013-432 | CLAMP WIRING HARNESS,M8 | 1 | $3.95 | |
| 5 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 6 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 8 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 9 | 0108-287 | MOUNT,ENGINE-FEMALE | 1 | $14.95 | |
| 10 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 11 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 12 | 0612-562 | BRKT,MTG-RESONATOR-OUTER | 1 | $7.95 | |
| 13 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 14 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 15 | 0623-551 | SCREW,SELF TAP-HWH #6X.50-TYPE AB Z&Y | 1 | $0.15 | |
| 16 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 17 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 18 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 19 | 0686-099 | HARNESS,ENGINE GROUND | 1 | $9.59 | |
| 20 | 0608-071 | SUPPORT, ANGLE-ENGINE MTG | 1 | $65.95 | |
| 21 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 22 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 23 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 24 | 0627-012 | BELT,DRIVE REG. COMPOUND 12.2 CTRS | 1 | $92.95 | |
| 25 | 0712-130 | MANIFOLD,EXHAUST | 1 | $146.95 | |
| 26 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 27 | 0712-120 | CHAMBER, EXP-WELDT | 1 | $549.95 | |
| 28 | 0712-194 | RESONATOR,EXHAUST-WELDT | 1 | $451.95 | |
| 29 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 31 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 32 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 33 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 34 | 0623-157 | RETAINER NUT,1/4-20 | 1 | $3.85 | |
| 35 | 0616-818 | DUCT,AIR IN | 1 | $136.95 | |
| 36 | 0612-013 | SPRING,EXTENSION | 1 | $20.63 | |
| 37 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 38 | 0608-044 | BUMPER,TORQ.{2.600/2.700}-ENGINE-60 DU | 1 | $18.95 | |
| 39 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 40 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 41 | 0623-472 | SCREW, CAP HSBH 1/4X20X1- Z&Y | 1 | $0.95 |
