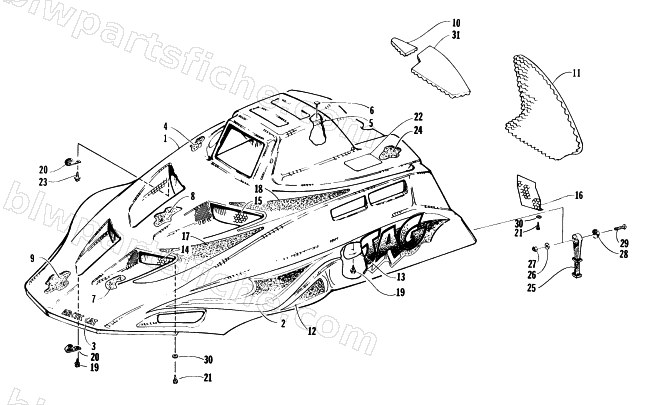

1996 Arctic Cat JAG — HOOD ASSEMBLY
1996 JAG
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-227 | HOOD W/O DECALS | 1 | $1,599.95 | |
| 1 | 0718-390 | HOOD W/ DECALS | 1 | $1,695.95 | |
| 2 | 2611-250 | DECAL,HOOD-RH | 1 | $60.95 | |
| 2 | 2611-251 | DECAL,HOOD-LH | 1 | $59.95 | |
| 3 | 1611-756 | DECAL,ARCTIC CAT-HOT GREEN | 1 | $15.11 | |
| 4 | 0617-122 | FOAM,HOOD-RH SIDE | 1 | $14.95 | |
| 5 | 0717-012 | FOAM,HOOD-HEADLIGHT POD | 1 | $15.95 | |
| 6 | 0623-143 | CLIP,CHRISTMAS TREE | 1 | $4.95 | |
| 7 | 0117-835 | TAPE ALUM REFLECTORIZED 6X6 SQ(0619-727) | 1 | $8.89 | |
| 8 | 0717-030 | FOAM,HOOD-CENTER (VENTS) | 1 | $17.95 | |
| 9 | 0717-025 | FOAM,HOOD CENTER LOWER | 1 | $23.29 | |
| 10 | 0617-134 | FOAM,DUCT-AIR OUT (SIDE) | 1 | $3.95 | |
| 11 | 0717-031 | FOAM,DUCT-AIR OUT (BOTTOM) | 1 | $8.95 | |
| 12 | 2611-328 | DECAL,HOOD-LOWER-RH | 1 | $10.95 | |
| 12 | 2611-329 | DECAL,HOOD-LOWER-LH | 1 | $8.95 | |
| 14 | 0616-068 | SCREEN,VENT-HOOD-LOWER RH | 1 | $10.97 | |
| 14 | 0616-069 | SCREEN,VENT-HOOD-LOWER LH | 1 | $10.97 | |
| 15 | 0616-070 | SCREEN,VENT-HOOD-UPPER RH | 1 | $19.25 | |
| 15 | 0616-071 | SCREEN,VENT-HOOD-UPPER LH | 1 | $17.87 | |
| 16 | 0706-958 | SCREEN,ASS'Y-VENT HOOD-REAR RH | 1 | $15.95 | |
| 16 | 0706-849 | SCREEN,VENT-HOOD-REAR LH | 1 | $13.29 | |
| 17 | 2611-326 | DECAL,HOOD-CENTER-RH | 1 | $29.95 | |
| 17 | 2611-327 | DECAL,HOOD-CENTER-LH | 1 | $29.95 | |
| 18 | 2611-252 | DECAL,HOOD-UPPER-RH | 1 | $32.95 | |
| 18 | 2611-253 | DECAL,HOOD-UPPER-LH | 1 | $32.95 | |
| 19 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 20 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 21 | 0623-311 | SCREW,SELF TAP-HWH #8X3/8 TYPE A | 1 | $0.65 | |
| 22 | 1611-407 | DECAL,WARNING-HOOD | 1 | $19.95 | |
| 23 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 24 | 0617-111 | FOAM,HOOD CENTER-UPPER | 1 | $14.95 | |
| 25 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 26 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 27 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 29 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 30 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 31 | 0617-135 | FOAM,HOOD-AIR OUT | 1 | $13.95 |
