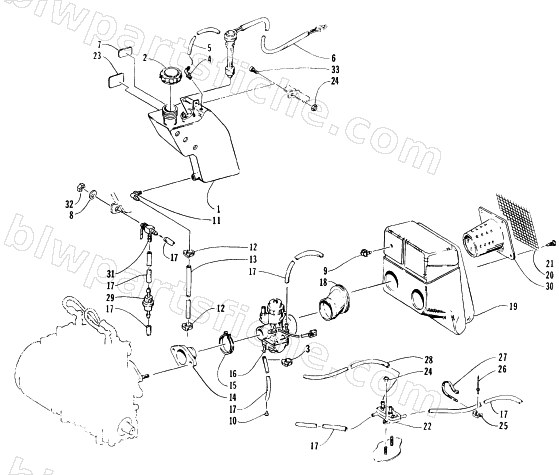

1996 Arctic Cat JAG LIQUID — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
1996 JAG LIQUID
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-239 | TANK,OIL | 1 | $83.95 | |
| 2 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 3 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 4 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 5 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 6 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 7 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 8 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 9 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 10 | 0670-228 | PLUG,CARB DRAIN | 1 | $3.30 | |
| 11 | 0670-075 | FITTING,ELBOW | 1 | $4.54 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 14 | 0670-197 | FLANGE,CARB-38MM W/CLAMP | 1 | $66.95 | |
| 15 | 0670-209 | SPACER,CLAMP- 8 MM | 1 | $3.95 | |
| 16 | 0770-099 | CARB, VM36 W/CARB SWITCH | 1 | $676.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 17 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 18 | 1670-389 | BOOT, AIR SILENCER | 1 | $37.95 | |
| 19 | 0670-290 | SILENCER,AIR-.200 THICK RIBBED | 1 | $89.59 | |
| 20 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 21 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 22 | 0670-146 | FUEL PUMP(DF52-129) | 1 | $136.95 | |
| 23 | 0611-978 | DECAL,FUEL SHUT-OFF VALVE | 1 | $10.95 | |
| 24 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 26 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 28 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 29 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 30 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 | |
| 31 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 32 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 |
