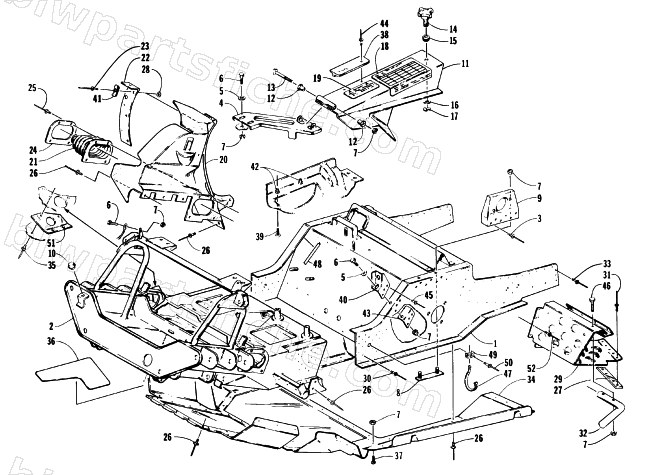

1996 Arctic Cat JAG DELUXE — FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY
1996 JAG DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-161 | FRONT END-CHASSIS-PAINTED | 1 | $679.95 | |
| 2 | 0707-162 | FRONT END-WELDT | 1 | $938.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 0707-107 | BRACKET,MTG-CLUTCH SHIELD WELD'T | 1 | $32.95 | |
| 5 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 6 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 9 | 0707-065 | SUPPORT,BEARING-WELDT | 1 | $81.95 | |
| 10 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 11 | 0707-098 | SHIELD,CLUTCH-ASSY | 1 | $138.95 | |
| 12 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 13 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 14 | 0607-095 | KNOB,THREADED MALE STUD | 1 | $24.77 | |
| 15 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 16 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 17 | 0607-096 | RETAINER,KNOB-CLUTCH SHLD | 1 | $20.63 | |
| 18 | 2611-229 | DECAL,JET CHART | 1 | $6.95 | |
| 19 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 20 | 0606-966 | FENDER,INNER RH | 1 | $157.95 | |
| 20 | 0606-967 | FENDER, INNER LH | 1 | $155.95 | |
| 21 | 0605-187 | BOOT,STEERING-DRAG LINK | 1 | $36.95 | |
| 22 | 0616-012 | CHANNEL,POD-RH | 1 | $10.95 | |
| 22 | 0616-013 | CHANNEL,POD-LH | 1 | $10.95 | |
| 23 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 24 | 0605-188 | FLANGE,MOUNTING-STEERING BOOT | 1 | $4.95 | |
| 25 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 26 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 27 | 0616-368 | PLATE,BACKING-FOOTREST/RIVET | 1 | $1.95 | |
| 28 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 29 | 0606-197 | FOOTREST-LH,PAINTED | 1 | $152.95 | |
| 29 | 0606-198 | FOOTREST-RH,PAINTED | 1 | $157.95 | |
| 31 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 32 | 0706-845 | TUBE,POD BUMPER | 1 | $13.73 | |
| 34 | 0606-962 | BELLYPAN,PLASTIC | 1 | $255.95 | |
| 35 | 8061-510 | RIVET,BLIND-LF SS58 BLACK | 1 | $0.81 | |
| 36 | 0606-671 | FOIL,BELLYPAN | 1 | $4.95 | |
| 39 | 0623-226 | SCREW,SELF TAP- #10-32 X 7/8 TYPE F B | 1 | $0.35 | |
| 40 | 0707-169 | BRACKET,TORQUE BUMPER-WELDMENT | 1 | $42.95 | |
| 41 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 42 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 44 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 45 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 46 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 47 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 48 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 49 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 50 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 51 | 0612-256 | SEAL,EXHAUST OUTLET | 1 | $26.95 | |
| 52 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 |
