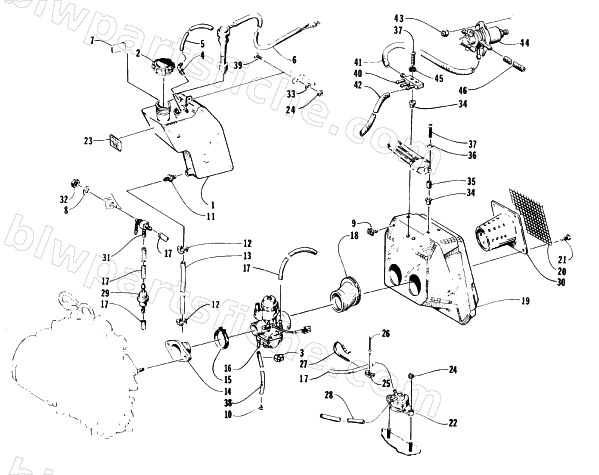

1996 Arctic Cat EXT POWDER SPECIAL — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
1996 EXT POWDER SPECIAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-239 | TANK,OIL | 1 | $83.95 | |
| 2 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 3 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 4 | 0670-292 | FITTING,COOLANT TANK | 1 | $0.45 | |
| 5 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 6 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 7 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 8 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 9 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 10 | 0670-228 | PLUG,CARB DRAIN | 1 | $3.30 | |
| 11 | 0670-117 | OUTLET,OILTANK-5/16 TUBE | 1 | $3.95 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 14 | 0670-197 | FLANGE,CARB-38MM W/CLAMP | 1 | $66.95 | |
| 15 | 0670-199 | CLAMP,CARB FLANGE-VM38 W/SPACER | 1 | $27.95 | |
| 16 | 0770-168 | CARB,VM38-321 RH W/SWITCH | 1 | $692.95 | |
| 16 | 0770-169 | CARB,VM38-322 LH W/SWITCH | 1 | $655.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 17 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 18 | 1670-388 | BOOT, AIR SILENCER | 1 | $37.95 | |
| 19 | 0770-167 | AIR SILENCER W/INSERTS | 1 | $152.95 | |
| 20 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 21 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 22 | 0670-311 | FUEL PUMP-ASSY.(DF52-152) | 1 | $124.95 | |
| 23 | 0611-978 | DECAL,FUEL SHUT-OFF VALVE | 1 | $10.95 | |
| 24 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 26 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 28 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 29 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 30 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 | |
| 31 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 32 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 33 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 34 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 35 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 36 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 38 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 40 | 0670-759 | MANIFOLD,PRESSURE- COMPENSATOR | 1 | $133.95 | |
| 41 | 0610-331 | HOSE, VACUUM-12.00 LG W/CLAMPS | 1 | $9.59 | |
| 42 | 0610-329 | HOSE, VACUUM-4.92 LG W/CLAMPS | 1 | $2.88 | |
| 43 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 44 | 0670-492 | PRESSURE,COMPENSATOR-HAC | 1 | $477.95 | |
| 45 | 8052-152 | WASHER,LOCK-NO.10 INTL TOOTH TYP A Z&Y | 1 | $0.15 |
