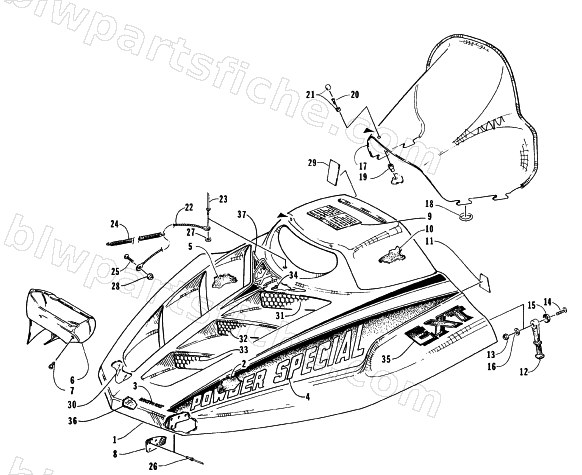

1996 Arctic Cat EXT POWDER SPECIAL — HOOD AND WINDSHIELD ASSEMBLY
1996 EXT POWDER SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-398 | HOOD W/DECALS-96 EXT P/S | 1 | $1,859.95 | |
| 1 | 0718-397 | HOOD,W/O DECALS 96 EXT POWDER SPECIAL | 1 | $1,652.95 | |
| 2 | 0717-058 | FOAM,HOOD-RH | 1 | $32.95 | |
| 2 | 0717-059 | FOAM,HOOD-LH | 1 | $32.95 | |
| 3 | 2611-416 | DECAL,ARCTIC (METALIC PURPLE) | 1 | $10.95 | |
| 4 | 2611-412 | DECAL,HOOD-SIDE-RH | 1 | $91.95 | |
| 4 | 2611-413 | DECAL,HOOD-SIDE-LH | 1 | $87.95 | |
| 5 | 0717-060 | FOAM,HOOD-CENTER-RH | 1 | $5.95 | |
| 5 | 0717-061 | FOAM,HOOD-CENTER-LH | 1 | $5.95 | |
| 6 | 0616-432 | DUCT,AIR-BRAKE | 1 | $53.95 | |
| 7 | 0623-505 | SCREW,SELF TAP-HWH #6X5/8 TYP A Z&Y | 1 | $0.15 | |
| 8 | 0616-438 | BRKT, HOOD HINGE | 1 | $6.95 | |
| 9 | 1611-575 | DECAL,WARNING-HOOD | 1 | $25.95 | |
| 10 | 0717-062 | FOAM,HOOD-UPPER-RH | 1 | $13.95 | |
| 10 | 0717-063 | FOAM,HOOD-UPPER-LH | 1 | $13.95 | |
| 11 | 2611-163 | DECAL,WARNING-BRAKE ENG/FRENCH | 1 | $19.95 | |
| 12 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 15 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0616-875 | WINDSHIELD,PURPLE | 1 | $127.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 22 | 0616-614 | CABLE,HOOD-36.5 (.20 EYELET BOTH ENDS) | 1 | $15.11 | |
| 23 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 24 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 25 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 26 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 27 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 28 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 29 | 2611-176 | DECAL,CAUTION-ENGINE/BATTERY | 1 | $17.95 | |
| 30 | 0616-498 | FOIL,HOOD-RH | 1 | $21.95 | |
| 31 | 0716-288 | SCREEN,HOOD-WELD'T-TOP RH (GREEN) | 1 | $21.95 | |
| 31 | 0716-289 | SCREEN,HOOD-WELD'T-TOP LH (GREEN) | 1 | $38.95 | |
| 32 | 0716-290 | SCREEN,HOOD-WELD'T-CENTER RH (GREEN) | 1 | $20.95 | |
| 32 | 0716-291 | SCREEN,HOOD-WELD'T-CENTER LH (GREEN) | 1 | $38.95 | |
| 33 | 0716-292 | SCREEN,HOOD-WELD'T-LOWER RH (GREEN) | 1 | $38.95 | |
| 33 | 0716-293 | SCREEN,HOOD-WELD'T-LOWER LH (GREEN) | 1 | $33.95 | |
| 34 | 0623-551 | SCREW,SELF TAP-HWH #6X.50-TYPE AB Z&Y | 1 | $0.15 | |
| 35 | 2611-414 | ECAL,HOOD-EXT | 1 | $73.95 | |
| 36 | 0619-230 | FOIL,3 X 24 | 1 | $13.95 | |
| 37 | 2611-415 | DECAL,HOOD-EXT-CENTER | 1 | $39.95 |
