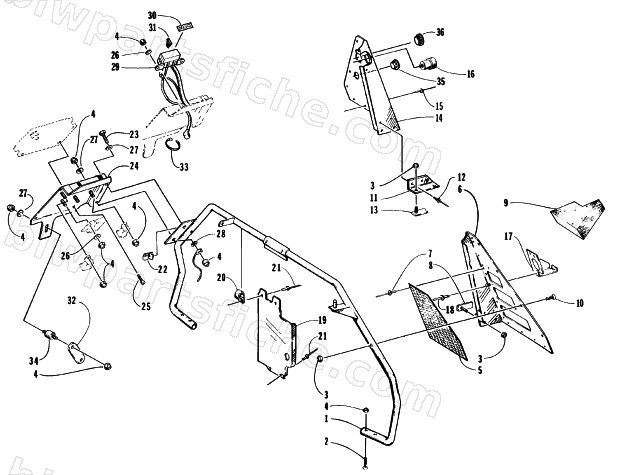

STEERING SUPPORT ASSEMBLY
1996 EXT EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0705-151 | SUPPORT,STEERING-WELD'T (EFI) | 1 | $160.95 | |
| 2 | 0623-060 | SCREW,OVAL HEAD-1/4-20X1-1/2 | 1 | $1.64 | |
| 3 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0616-283 | SCREEN,VENT | 1 | $19.25 | |
| 6 | 0616-641 | PLATE,BACKING-VENT-LH | 1 | $89.95 | |
| 7 | 8061-426 | RIVET,BLIND-LF AA54 BLACK | 1 | $0.95 | |
| 8 | 1705-113 | PLATE, BACKING SIDE-PTD BLK | 1 | $12.35 | |
| 9 | 0617-198 | FOAM,BACKING PLATE-LH VENT | 1 | $18.95 | |
| 10 | 0623-227 | SCREW,MACH FH CR 10-24 X 1.25 | 1 | $0.95 | |
| 11 | 0605-120 | BRACE,STEERING SUPPORT-RH | 1 | $16.49 | |
| 11 | 0605-121 | BRACE,STEERING SUPPORT-LH | 1 | $16.95 | |
| 12 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 13 | 1705-114 | PLATE, BACKING TOP-PTD BLK | 1 | $8.95 | |
| 14 | 0716-273 | PLATE,BACKING-VENT W/STUDS | 1 | $69.95 | |
| 15 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 16 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 17 | 0716-190 | BRKT,HOLDDOWN-FUELTANK WELD'T-RH | 1 | $19.95 | |
| 17 | 0716-191 | BRKT,HOLDDOWN-FUELTANK WELD'T-LH | 1 | $18.95 | |
| 18 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 20 | 0623-342 | CLAMP,TUBE | 1 | $5.51 | |
| 21 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 22 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 23 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 24 | 0716-258 | TRAY,MTG-ECU ASSY | 1 | $34.95 | |
| 25 | 8006-397 | SCREW, CAP-HSH 10-32X.50 Z&Y | 1 | $0.55 | |
| 26 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 27 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 28 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 29 | 0745-070 | FUSE BOX ASSEMBLY W/DECAL | 1 | $199.95 | |
| 30 | 2611-152 | DECAL,FUSE BOX | 1 | $8.95 | |
| 31 | 0630-056 | FUSE,3 AMP-ATO | 1 | $5.95 | |
| 31 | 0630-057 | FUSE,10 AMP ATO | 1 | $8.95 | |
| 31 | 0630-058 | FUSE,15 AMP ATO | 1 | $8.21 | |
| 32 | 0616-494 | BRACKET,MOUNTING-ECU TRAY | 1 | $3.95 | |
| 33 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 34 | 0115-018 | MOUNT,RADIATOR | 1 | $18.95 | |
| 35 | 0616-044 | PLUG,HOLE-1.12 | 1 | $1.92 | |
| 36 | 0616-892 | PLUG,HOLE-1.50 | 1 | $2.06 |
