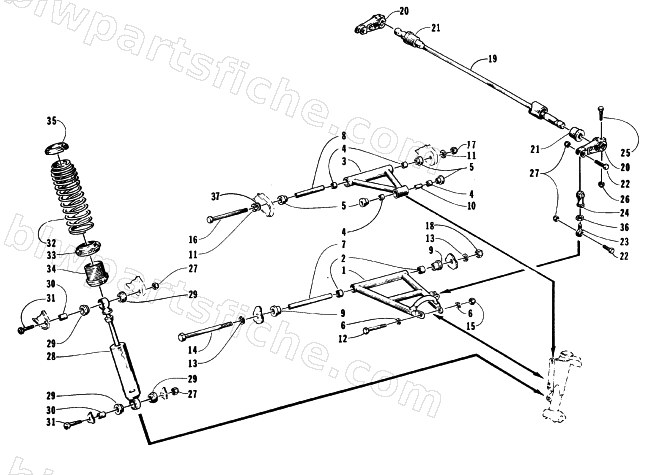

FRONT SUSPENSION AND SHOCK ABSORBER
1996 EXT 580
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-252 | ARM,FRT.-LOWER-FAB-RH | 1 | $225.95 | |
| 1 | 0703-253 | ARM,FRT.-LOWER-FAB-LH | 1 | $268.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 0703-208 | ARM,FRT-UPPER-FAB | 1 | $148.95 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 6 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 7 | 0603-517 | TUBE,AXLE-LOWER PIVOT | 1 | $41.95 | |
| 8 | 0603-516 | TUBE,AXLE-UPPER ARM-PIVOT | 1 | $28.95 | |
| 9 | 0603-524 | AXLE,SERRATED-LOWER ARM PIVOT | 1 | $6.47 | |
| 10 | 0603-072 | TUBE, AXLE | 1 | $1.95 | |
| 11 | 8051-272 | WASHER,SPR LOCK-3/8 .377X.680X.094 Z&Y | 1 | $0.12 | |
| 12 | 0623-414 | SCREW,CAP HH 3/8-16 X 4.75 GR8 Z&Y | 1 | $4.68 | |
| 13 | 8051-307 | WASHER,SPR LOCK-7/16 .440X.784X.133 Z&Y | 1 | $0.40 | |
| 15 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 16 | 0623-509 | SCREW,CAP-HH 3/8-16X9.455 GD 8 | 1 | $32.95 | |
| 17 | 0623-426 | NUT,NY-LOCK 3/8-16-NYL CAP BLACK | 1 | $1.64 | |
| 18 | 8040-546 | NUT,HEX LOCK-NYL 7/16-14 Z&Y | 1 | $0.45 | |
| 19 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 20 | 0603-558 | ARM,SWAYBAR-PTD BLK | 1 | $78.95 | |
| 21 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 22 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 23 | 0605-202 | ROD END-RH | 1 | $84.95 | |
| 24 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 25 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 26 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 27 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 28 | 0603-649 | SHOCK,FRONT SUSPENSION-AFX | 1 | $322.95 | |
| 29 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 30 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 32 | 0603-665 | SPRING,COMP 10.50" - 110# - PTD GRN | 1 | $120.95 | |
| 33 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 34 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 35 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 36 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 37 | 0623-450 | WASHER, FLAT .380X.938 | 1 | $0.75 |
