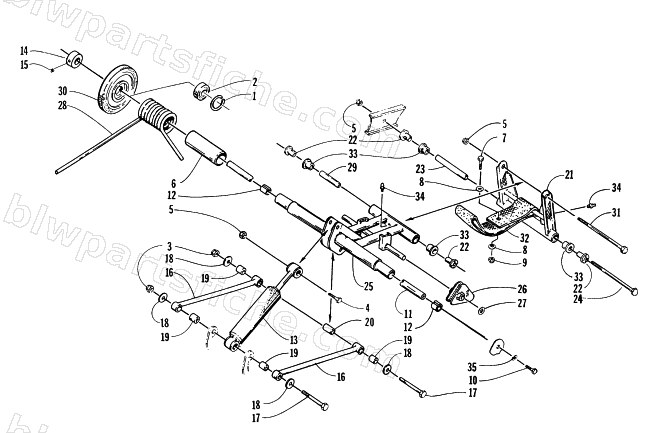

1996 Arctic Cat EXT 580 EFI DX — REAR SUSPENSION REAR ARM ASSEMBLY
1996 EXT 580 EFI DX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 2 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 3 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 4 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 5 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 6 | 0114-254 | SLEEVE,SPRING | 1 | $6.95 | |
| 7 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 8 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 9 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 11 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 12 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 13 | 1604-001 | SHOCK ABSORBER,REAR ARM-RYDE FX | 1 | $363.95 | |
| 14 | 0704-853 | COLLAR,LOCK-IDLER WHEEL-PTD BLK | 1 | $45.95 | |
| 15 | 0623-217 | SCREW,SET 1/4-20X.25 TYPE G | 1 | $0.35 | |
| 16 | 1704-201 | LINK,REAR SHOCK-PTD BLK | 1 | $54.95 | |
| 17 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 18 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 19 | 0604-269 | AXLE,LINK-REAR SHOCK | 1 | $1.64 | |
| 20 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 21 | 0704-177 | ARM,REAR-FABRICATION | 1 | $129.95 | |
| 22 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 24 | 0623-782 | SCREW,CAP-HH 3/8-16X10 GR 8 Z&Y | 1 | $13.73 | |
| 25 | 0704-178 | ARM,IDLER-REAR | 1 | $218.95 | |
| 26 | 0604-556 | BLOCK,SPRING ADJUSTER RH | 1 | $31.95 | |
| 26 | 0604-557 | BLOCK,SPRING ADJUSTER LH | 1 | $34.95 | |
| 27 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 28 | 1704-184 | SPRING,SUSPENSION-RH-PTD BLK | 1 | $77.95 | |
| 28 | 1704-185 | SPRING,SUSPENSION-LH-PTD BLK | 1 | $73.95 | |
| 29 | 0604-204 | AXLE,IDLER-LOWER | 1 | $44.95 | |
| 30 | 0604-374 | WHEEL,IDLER-5.63 W/1 ID | 1 | $53.95 | |
| 31 | 0623-106 | SCREW,CAP 3/8-16X8 ZN/YLW GR5 | 1 | $2.95 | |
| 32 | 0604-906 | STRAP,LIMITER-REAR | 1 | $54.95 | |
| 33 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 34 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 35 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 |
