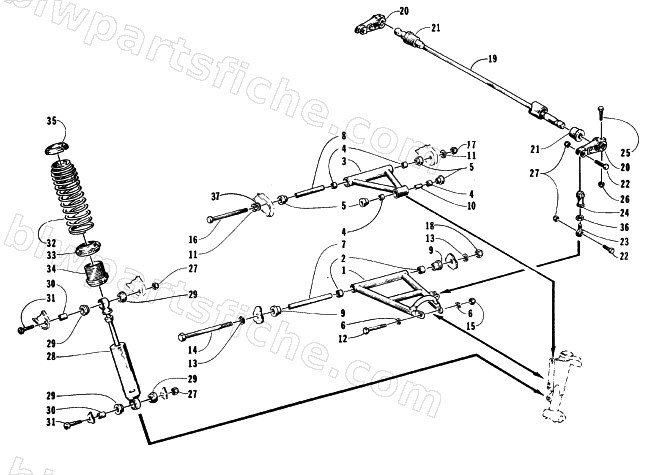

1996 Arctic Cat EXT 580 EFI DX — FRONT SUSPENSION AND SHOCK ABSORBER
1996 EXT 580 EFI DX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-252 | ARM,FRT.-LOWER-FAB-RH | 1 | $225.95 | |
| 1 | 0703-253 | ARM,FRT.-LOWER-FAB-LH | 1 | $268.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 0703-208 | ARM,FRT-UPPER-FAB | 1 | $148.95 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 6 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 7 | 0603-517 | TUBE,AXLE-LOWER PIVOT | 1 | $41.95 | |
| 8 | 0603-516 | TUBE,AXLE-UPPER ARM-PIVOT | 1 | $28.95 | |
| 9 | 0603-524 | AXLE,SERRATED-LOWER ARM PIVOT | 1 | $6.47 | |
| 10 | 0603-072 | TUBE, AXLE | 1 | $1.95 | |
| 11 | 8051-272 | WASHER,SPR LOCK-3/8 .377X.680X.094 Z&Y | 1 | $0.12 | |
| 12 | 0623-414 | SCREW,CAP HH 3/8-16 X 4.75 GR8 Z&Y | 1 | $4.68 | |
| 13 | 8051-307 | WASHER,SPR LOCK-7/16 .440X.784X.133 Z&Y | 1 | $0.40 | |
| 15 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 16 | 0623-509 | SCREW,CAP-HH 3/8-16X9.455 GD 8 | 1 | $32.95 | |
| 17 | 0623-426 | NUT,NY-LOCK 3/8-16-NYL CAP BLACK | 1 | $1.64 | |
| 18 | 8040-546 | NUT,HEX LOCK-NYL 7/16-14 Z&Y | 1 | $0.45 | |
| 19 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 20 | 0603-558 | ARM,SWAYBAR-PTD BLK | 1 | $78.95 | |
| 21 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 22 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 23 | 0605-202 | ROD END-RH | 1 | $84.95 | |
| 24 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 25 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 26 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 27 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 28 | 0603-649 | SHOCK,FRONT SUSPENSION-AFX | 1 | $322.95 | |
| 29 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 30 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 32 | 0603-665 | SPRING,COMP 10.50" - 110# - PTD GRN | 1 | $120.95 | |
| 33 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 34 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 35 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 36 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 37 | 0623-450 | WASHER, FLAT .380X.938 | 1 | $0.75 |
