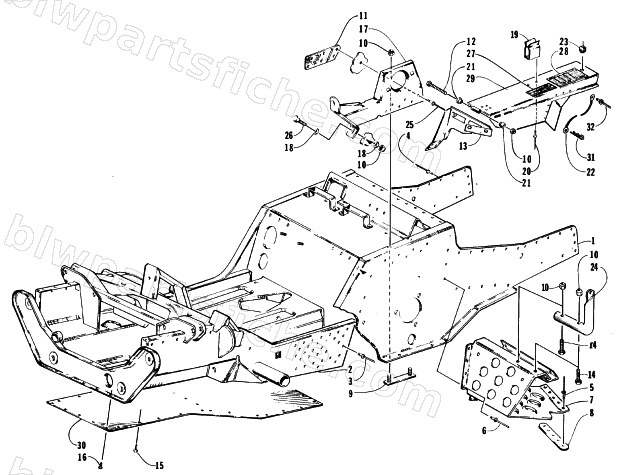

1996 Arctic Cat EXT 580 EFI DX — FRONT FRAME, FOOTREST, AND GUARD ASSEMBLY
1996 EXT 580 EFI DX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-227 | FRONT END,ALUM-FAB | 1 | $797.95 | |
| 2 | 0707-193 | FRONT END-WELDT | 1 | $932.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 6 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 7 | 0606-198 | FOOTREST-RH,PAINTED | 1 | $157.95 | |
| 7 | 0606-197 | FOOTREST-LH,PAINTED | 1 | $152.95 | |
| 8 | 0616-368 | PLATE,BACKING-FOOTREST/RIVET | 1 | $1.95 | |
| 9 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0607-388 | PLATE,BACKING-BEARING SUPPORT | 1 | $3.99 | |
| 12 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 13 | 0616-655 | BRKT,MTG-GUARD | 1 | $50.95 | |
| 14 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 15 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 16 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 18 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 19 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 20 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 21 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 22 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 23 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 24 | 0716-219 | TUBE,BUMPER SUPPORT | 1 | $30.95 | |
| 25 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 26 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 27 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 28 | 2611-476 | DECAL,CLUTCHING-HI ALTITUDE(96 EXT DELUX | 1 | $6.95 | |
| 29 | 0707-841 | SHIELD,CLUTCH-ASS'Y-PTD BLK | 1 | $120.95 | |
| 31 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 |
