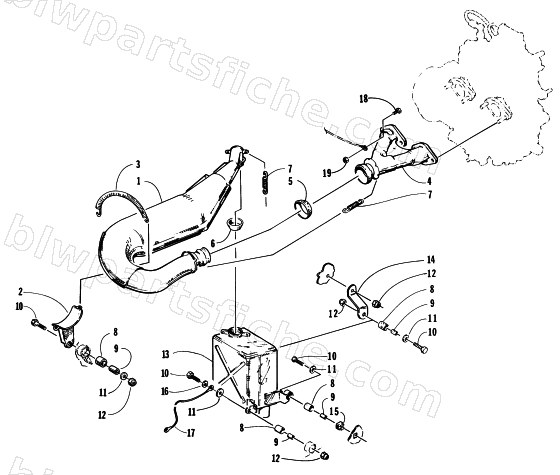

1996 Arctic Cat COUGAR 2-UP — EXHAUST ASSEMBLY
1996 COUGAR 2-UP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-157 | CHAMBER,EXPANSION-ASSY | 1 | $532.95 | |
| 2 | 0712-177 | BRACKET,SUPPORT-EXP CHAMBER | 1 | $15.95 | |
| 3 | 0612-013 | SPRING,EXTENSION | 1 | $20.63 | |
| 5 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 6 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 7 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 8 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 10 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 11 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 0712-172 | RESONATOR,EXHAUST-WELDT | 1 | $445.95 | |
| 15 | 0623-157 | RETAINER NUT,1/4-20 | 1 | $3.85 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0686-099 | HARNESS,ENGINE GROUND | 1 | $9.59 | |
| 18 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 19 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 |
