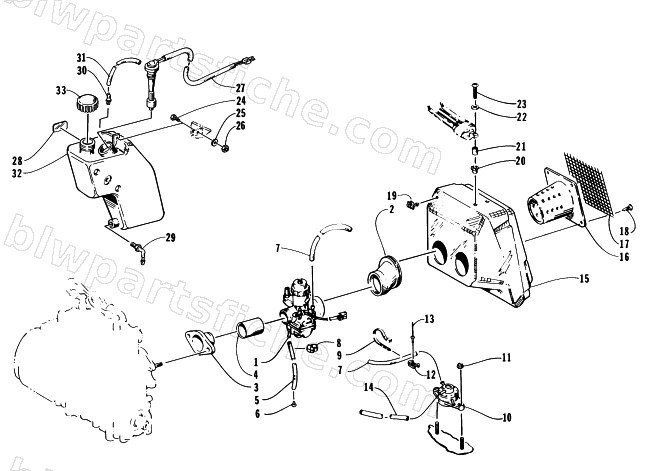

1996 Arctic Cat BEARCAT WIDE TRACK — CARBURETOR, FUEL PUMP, OIL TANK, AND AIR SILENCER
1996 BEARCAT WIDE TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-100 | CARB,VM38-273 W/SWITCH | 1 | $867.95 | |
| 2 | 1670-389 | BOOT, AIR SILENCER | 1 | $37.95 | |
| 3 | 0670-197 | FLANGE,CARB-38MM W/CLAMP | 1 | $66.95 | |
| 4 | 0670-209 | SPACER,CLAMP- 8 MM | 1 | $3.95 | |
| 5 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 6 | 0670-228 | PLUG,CARB DRAIN | 1 | $3.30 | |
| 7 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 8 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0670-311 | FUEL PUMP-ASSY.(DF52-152) | 1 | $124.95 | |
| 11 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 13 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 14 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 15 | 0770-132 | AIR SILENCER W/INSERTS | 1 | $109.95 | |
| 16 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 | |
| 17 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 18 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 19 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 20 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 21 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 22 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 25 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 26 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 27 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 28 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 29 | 0670-075 | FITTING,ELBOW | 1 | $4.54 | |
| 30 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 31 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 32 | 0670-239 | TANK,OIL | 1 | $83.95 | |
| 33 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 |
