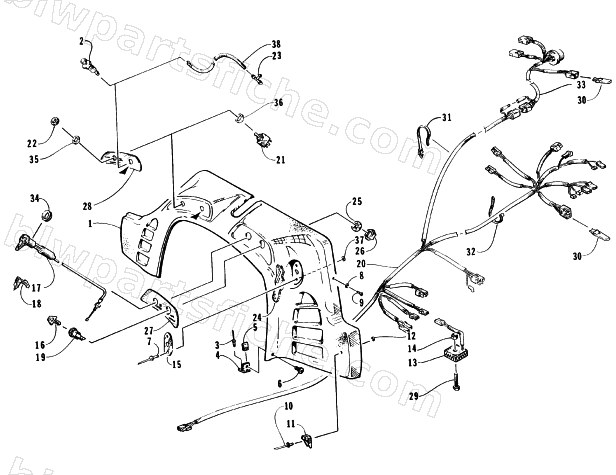

1996 Arctic Cat BEARCAT 340 — CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
1996 BEARCAT 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0644-198 | WRENCH,NUT-SWITCH | 1 | $1.78 | |
| 1 | 0616-980 | CONSOLE, CARB | 1 | $521.95 | |
| 2 | 0670-006 | PRIMER | 1 | $70.95 | |
| 3 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 7 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 8 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 9 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 11 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 12 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 13 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0606-211 | PLATE,RECOIL | 1 | $19.25 | |
| 16 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 17 | 0109-722 | CABLE,CHOKE-23'' | 1 | $86.95 | |
| 18 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 19 | 0609-081 | SWITCH, IGN. (W/0 KEY) | 1 | $54.95 | |
| 20 | 0686-286 | HARNESS,MAIN WIRING | 1 | $244.95 | |
| 21 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 22 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 23 | 0670-026 | TEE,VENT LINE-OIL | 1 | $4.95 | |
| 24 | 0617-204 | FOAM,CONSOLE-RH | 1 | $8.95 | |
| 24 | 0617-205 | FOAM,CONSOLE-LH | 1 | $11.95 | |
| 25 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 26 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 27 | 2611-148 | DECAL,CONSOLE SWITCH RH | 1 | $11.95 | |
| 28 | 2611-195 | DECAL,CONSOLE SWITCH-LH | 1 | $16.95 | |
| 29 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 30 | 0609-069 | POSISTOR,WIRING | 1 | $23.39 | |
| 31 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 32 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 33 | 0686-338 | HARNESS,HEADLIGHT | 1 | $176.95 | |
| 34 | 0623-054 | NUT,PLASTIC-CHOKE | 1 | $4.40 | |
| 35 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 36 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 37 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 38 | 0610-012 | HOSE, PRIMER 25' | 1 | $126.95 |
