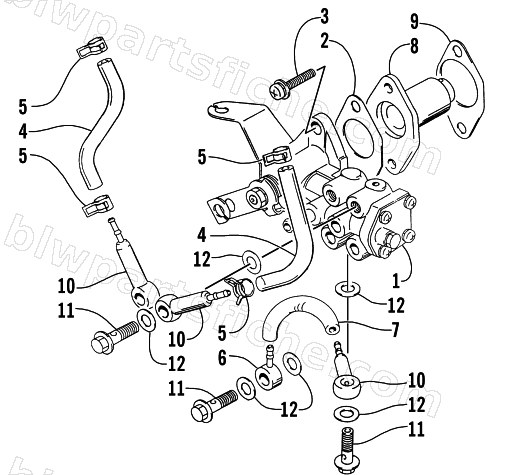

1995 Arctic Cat PANTERA — OIL PUMP
1995 PANTERA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-397 | OIL PUMP ASSY | 1 | $866.95 | |
| 2 | 3004-349 | GASKET, OIL PUMP | 1 | $12.35 | |
| 3 | 3007-421 | SCREW | 1 | $3.95 | |
| 4 | 3008-035 | HOSE, M3X7X600 | 1 | $34.95 | |
| 5 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 | |
| 6 | 3003-661 | UNION,M2 | 1 | $13.95 | |
| 7 | 3005-357 | HOSE, M2.5X7X600 | 1 | $24.77 | |
| 8 | 3004-763 | RETAINER,OIL PUMP SHAFT | 1 | $133.95 | |
| 9 | 3004-286 | GASKET, RETAINER | 1 | $12.35 | |
| 10 | 3003-217 | CHECK VALVE | 1 | $38.95 | |
| 11 | 3004-346 | BOLT, UNION | 1 | $4.68 | |
| 12 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 |
