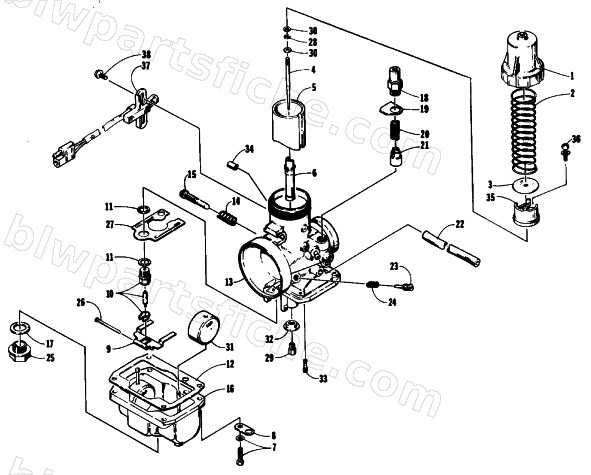

CARBURETOR
1994 ZR 580
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0770-102 | CARB, VM40-65 W/CARB SWITCH | 1 | $417.95 | |
| 1 | 6505-577 | TOP,MIXING BODY | 1 | $70.95 | |
| 2 | 6505-091 | SPRING,THROTTLE VALVE | 1 | $27.95 | |
| 3 | 6505-576 | PLATE | 1 | $5.95 | |
| 4 | 6505-814 | JET NEEDLE, 7DH5 | 1 | $16.49 | |
| 4 | 6505-549 | JET NEEDLE 7DJ2 | 1 | $29.95 | |
| 5 | 6505-806 | VALVE, PISTON-4.0-NICKLE PLATED-VM40 | 1 | $125.95 | |
| 6 | 6505-605 | NEEDLE JET AA-4(224) | 1 | $45.95 | |
| 6 | 6505-618 | NEEDLE JET Z-9 (224) | 1 | $37.95 | |
| 6 | 6505-808 | NEEDLE JET Z4 (224) | 1 | $46.95 | |
| 7 | 6505-195 | SCREW | 1 | $1.78 | |
| 8 | 6505-094 | PLATE,HOSE-CARBURETOR | 1 | $10.97 | |
| 9 | 6505-104 | FLOAT ARM,CARBURETOR | 1 | $19.95 | |
| 10 | 6505-551 | VALVE,NEEDLE | 1 | $53.95 | |
| 11 | 6505-102 | WASHER,VALVE SEAT | 1 | $1.09 | |
| 12 | 6505-197 | GASKET | 1 | $13.73 | |
| 14 | 6505-021 | SPRING | 1 | $3.44 | |
| 15 | 6505-101 | SCREW,THROTTLE STOP | 1 | $6.89 | |
| 16 | 6505-553 | FLOAT CHAMBER,BODY ASSEMBLY | 1 | $98.95 | |
| 17 | 6505-106 | WASHER,PLUG | 1 | $1.78 | |
| 18 | 6505-547 | PLUNGER CAP | 1 | $13.73 | |
| 19 | 6505-193 | WASHER | 1 | $3.16 | |
| 20 | 6505-033 | SPRING,STARTER PLUNGER | 1 | $17.87 | |
| 21 | 6505-035 | PLUNGER,STARTER | 1 | $17.87 | |
| 22 | 6505-280 | TUBE, AIR VENT | 1 | $6.34 | |
| 23 | 6505-019 | SCREW,AIR | 1 | $12.35 | |
| 24 | 6505-020 | SPRING,SCREW AIR | 1 | $3.44 | |
| 25 | 6505-105 | PLUG,SCREW-CARBURETOR | 1 | $14.95 | |
| 26 | 6505-153 | PIN,FLOAT ARM | 1 | $3.16 | |
| 28 | 6505-628 | E-RING | 1 | $3.44 | |
| 29 | 6505-125 | JET MAIN 420 | 1 | $6.75 | |
| 30 | 6505-552 | WASHER,E-RING PACKING | 1 | $1.23 | |
| 31 | 6505-049 | FLOAT | 1 | $29.95 | |
| 32 | 6505-098 | RING MAIN JET | 1 | $20.63 | |
| 33 | 6505-047 | JET PILOT 40 | 1 | $6.34 | |
| 34 | 6505-569 | CAP | 1 | $15.11 | |
| 35 | 0770-043 | BLOCK,MAGNET-ASSY | 1 | $53.95 | |
| 36 | 6505-559 | SCREW W/WASHER M5-1.0 X 12 | 1 | $1.50 | |
| 37 | 0630-008 | SWITCH,MAGNETIC CARB ASSY | 1 | $63.95 | |
| 38 | 0623-137 | SCREW,TAPTITE-HWH 6-32X.313 Z&Y | 1 | $0.32 |
