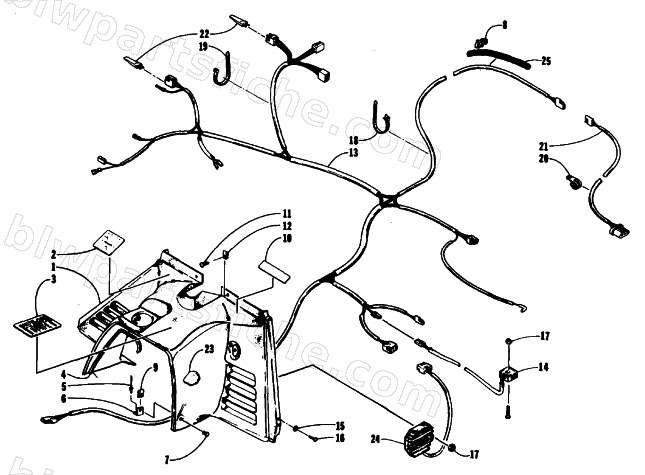

CONSOLE AND WIRING ASSEMBLIES
1994 WILDCAT EFI MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0616-222 | CONSOLE | 1 | $308.95 | |
| 2 | 1611-414 | DECAL,CAUTION-BATTERY & ENGINE | 1 | $23.95 | |
| 3 | 1611-600 | DECAL,WARNING-CONSOLE | 1 | $34.95 | |
| 4 | 0706-780 | TRIM,CONSOLE-62 LG. | 1 | $16.95 | |
| 5 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 8 | 0623-454 | CLIP,SNAP-IN (SPEEDO-CABLE) | 1 | $2.95 | |
| 9 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 10 | 1611-408 | DECAL,WARNING-SEATING CAP. | 1 | $17.95 | |
| 11 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 12 | 0623-425 | NUT,SPEED 10X24 U-TYPE | 1 | $0.95 | |
| 13 | 0686-213 | HARNESS,MAIN WIRING | 1 | $278.95 | |
| 14 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 15 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 16 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 17 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 19 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 20 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 21 | 0686-171 | HARNESS,HEADLIGHT | 1 | $58.95 | |
| 22 | 0609-069 | POSISTOR,WIRING | 1 | $23.39 | |
| 23 | 0617-140 | FOAM,CONSOLE-RH. | 1 | $8.95 | |
| 23 | 0617-141 | FOAM,CONSOLE-LH. | 1 | $23.95 | |
| 24 | 3007-912 | REGULATOR,VOLTAGE-DC(15V) | 1 | $383.95 | |
| 25 | 0706-994 | LOOM CTL 20 ,HARNESS PROTECTOR | 1 | $8.95 |
