1994 Arctic Cat WILDCAT EFI MOUNTAIN CAT — AIR SILENCER, BATTERY, AND OIL TANK
1994 WILDCAT EFI MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

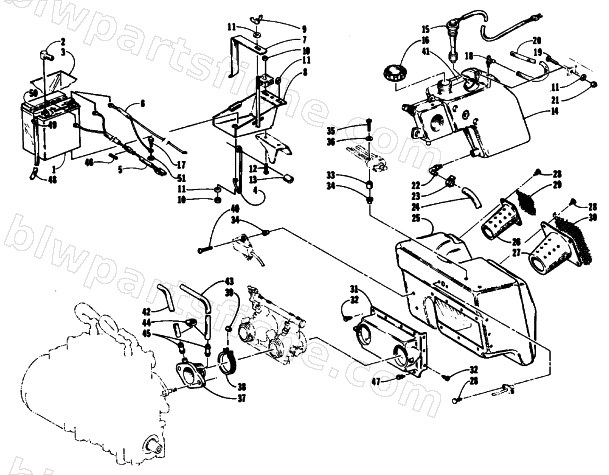

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-046 | BATTERY PKG (0645-176) | 1 | $96.95 | |
| 2 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 3 | 0645-102 | FOIL,4X5.75-HEAT SHIELD-TOP | 1 | $3.95 | |
| 4 | 0645-175 | BRACKET,SUPPORT-EFI BATTERY TRAY | 1 | $13.73 | |
| 5 | 0686-124 | HARNESS,BATTERY FUSE | 1 | $45.95 | |
| 7 | 0645-177 | STRAP,EFI BATTERY HOLDDOWN | 1 | $28.95 | |
| 8 | 0745-044 | TRAY,BATTERY-WELDMENT | 1 | $126.95 | |
| 9 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 12 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 13 | 0645-158 | SPACER, BATT SUPPORT | 1 | $2.95 | |
| 14 | 0670-440 | TANK,OIL/COOLANT-DUAL NIPPLE | 1 | $224.95 | |
| 15 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 16 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 17 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 18 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 20 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 21 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 0670-002 | FITTING, ELBOW-1/2HBX3/8NPT | 1 | $5.95 | |
| 23 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 24 | 0610-018 | HOSE 1/2 X15' | 1 | $257.95 | |
| 25 | 0770-113 | SILENCER,AIR-W/RIV NUTS | 1 | $139.95 | |
| 26 | 0670-205 | FUNNEL,AIR SILENCER 2 | 1 | $26.95 | |
| 27 | 0670-203 | FUNNEL,AIR SILENCER 3.5 | 1 | $26.95 | |
| 28 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 29 | 0670-208 | SCREEN,AIR INTAKE | 1 | $16.49 | |
| 30 | 0670-207 | SCREEN,AIR INTAKE | 1 | $27.95 | |
| 31 | 1670-396 | BOOT, AIR SILENCER | 1 | $113.95 | |
| 33 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 34 | 0623-084 | RIVET NUT,FLAT HEAD 10-32UNF X .130-.180 | 1 | $0.95 | |
| 36 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 38 | 0670-108 | CLAMP,CARB FLANGE (40/44 MM) | 1 | $24.77 | |
| 39 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 40 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 41 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 42 | 0610-062 | HOSE,BALANCE-SHORT | 1 | $6.95 | |
| 44 | 0623-365 | CLAMP,HOSE (SNP10) | 1 | $1.95 | |
| 45 | 0670-234 | TUBE,CONNECTING | 1 | $17.87 | |
| 46 | 0630-014 | FUSE,10 AMP | 1 | $10.95 | |
| 47 | 0123-995 | RIVET,EXPANSION | 1 | $1.95 | |
| 48 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 49 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 50 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 51 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 |
