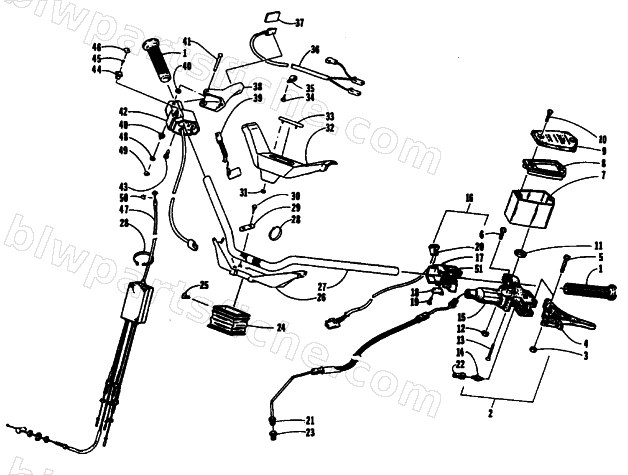

1994 Arctic Cat THUNDERCAT — HANDLEBAR ASSEMBLY
1994 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 3 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 4 | 0602-705 | LEVER,BRAKE-WILWOOD (SHORT) | 1 | $129.95 | |
| 5 | 0623-430 | BOLT, LEVER MOUNTING | 1 | $4.68 | |
| 6 | 0623-443 | SCREW, MACH SFILH M6-1.0X16MM CL8.8 Z&Y | 1 | $1.95 | |
| 7 | 0602-586 | RESERVOIR, MASTER CYL. | 1 | $102.95 | |
| 8 | 0602-585 | GASKET, COVER-MASTER CYL. | 1 | $26.95 | |
| 9 | 0602-584 | COVER,MASTER CYLINDER | 1 | $65.95 | |
| 10 | 0623-506 | SCREW,COVER-MASTER CYLINDER | 1 | $1.78 | |
| 11 | 0602-587 | O-RING, RESERVOIR-MASTER CYL. | 1 | $12.35 | |
| 12 | 0623-444 | NUT, HEX M6-1.0 CL 8.8 Z&Y | 1 | $9.95 | |
| 13 | 0623-432 | SCREW,RESERVOIR MOUNTING | 1 | $3.16 | |
| 14 | 0602-576 | SWITCH,BRAKE LIGHT | 1 | $45.95 | |
| 16 | 0709-061 | CONTROL,DIMMER-ASS'Y-TRIMMED | 1 | $117.95 | |
| 17 | 0709-062 | HOUSING,DIMMER CONTROL-TRIMMED | 1 | $48.95 | |
| 18 | 0609-088 | PLATE,RETAINING-HI BEAM SWITCH | 1 | $13.73 | |
| 19 | 0609-089 | SCREW,RETAINING PLATE | 1 | $3.95 | |
| 20 | 0609-179 | SWITCH & HARNESS,BRK CT | 1 | $85.95 | |
| 21 | 0602-678 | HOSE,HYDRAULIC-SERIES II | 1 | $105.95 | |
| 22 | 0630-038 | BOOT,SWITCH-HYD. BRAKE | 1 | $6.75 | |
| 23 | 0602-590 | FITTING,ADAPTER-1/8 NPT/DBL FLARE | 1 | $5.45 | |
| 25 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 26 | 0705-117 | HOUSING,HANDLEBAR PAD-PUNCHED | 1 | $26.95 | |
| 27 | 0605-077 | HANDLEBAR - PAINTED | 1 | $81.95 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 0605-094 | PLATE,MTG-HANDLE BAR PAD HOUSING | 1 | $37.95 | |
| 30 | 0123-875 | SCREW,METAL HEX #10X5/8 | 1 | $0.15 | |
| 31 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 32 | 0706-992 | PAD,HANDLEBAR-TRIMMED | 1 | $129.95 | |
| 34 | 0623-200 | SCREW,SELF TAP #8X5/16 | 1 | $0.15 | |
| 35 | 0623-169 | CLAMP,WIRE-3/16 ID | 1 | $8.21 | |
| 36 | 0636-766 | KIT, THUMBWARMER W/SWITCH | 1 | $44.95 | |
| 37 | 0617-109 | PAD,INSULATOR-THUMB WARMER | 1 | $21.95 | |
| 38 | 0609-123 | LEVER,THROTTLE-VM38 | 1 | $31.95 | |
| 39 | 0709-057 | PLUG,BY-PASS-IGNITION(2-PRONG) | 1 | $26.95 | |
| 40 | 0609-038 | SEAL,THROTTLE | 1 | $1.50 | |
| 41 | 0609-039 | PIN,THROTTLE LEVER | 1 | $3.95 | |
| 42 | 0609-152 | CONTROL,THROTTLE -DUAL CARB | 1 | $136.95 | |
| 43 | 0609-085 | SCREW,RETAINING-M6X20 | 1 | $1.50 | |
| 44 | 0609-120 | KNOB,EMER STOP SWITCH | 1 | $15.11 | |
| 45 | 0609-612 | SCREW, SELF-TAP PH-3MMX10MM | 1 | $3.16 | |
| 46 | 0609-121 | DECAL,MARK PLATE | 1 | $4.95 | |
| 47 | 0687-040 | CABLE,THROTTLE-VM38X3 | 1 | $262.95 | |
| 48 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 49 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 50 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 51 | 0611-153 | DECAL,DIMMER(SLVR) | 1 | $6.95 |
